spocketguard
Modle Number: SPB01018
Country of Origin: China
Brand Name: Spocketguard
Product Description:

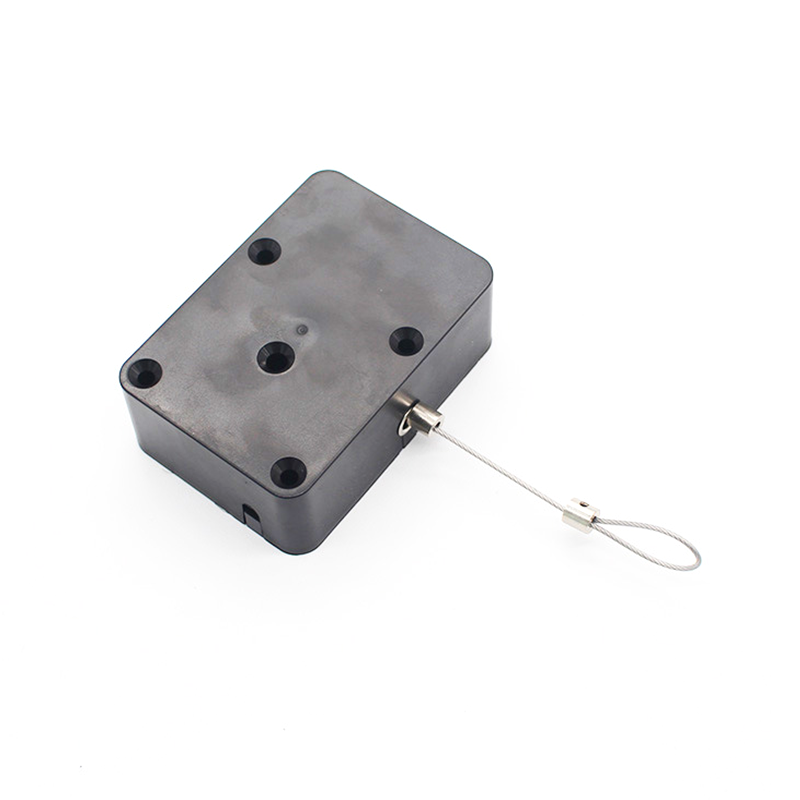

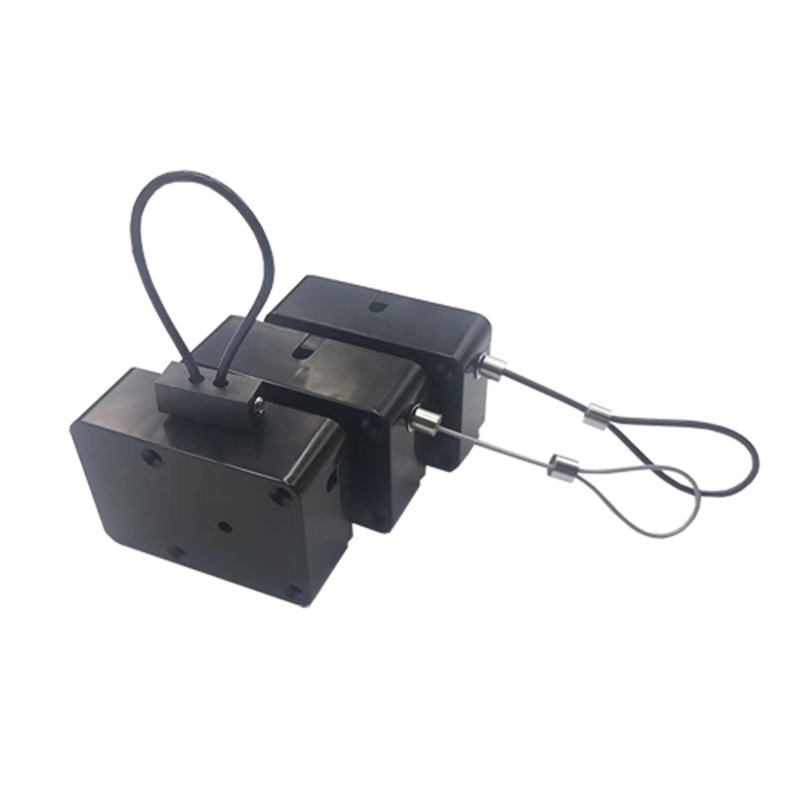

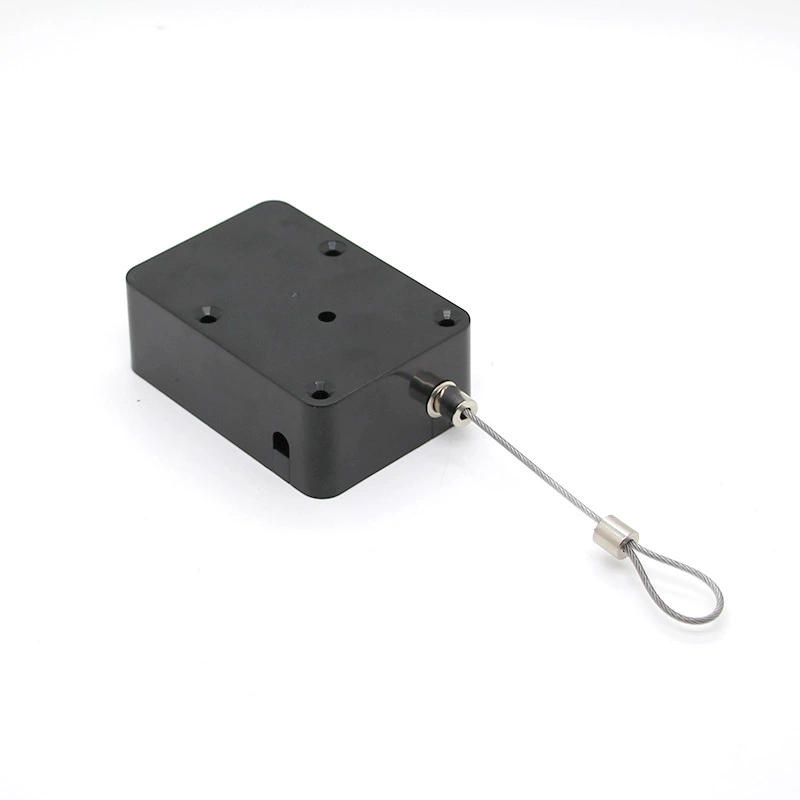

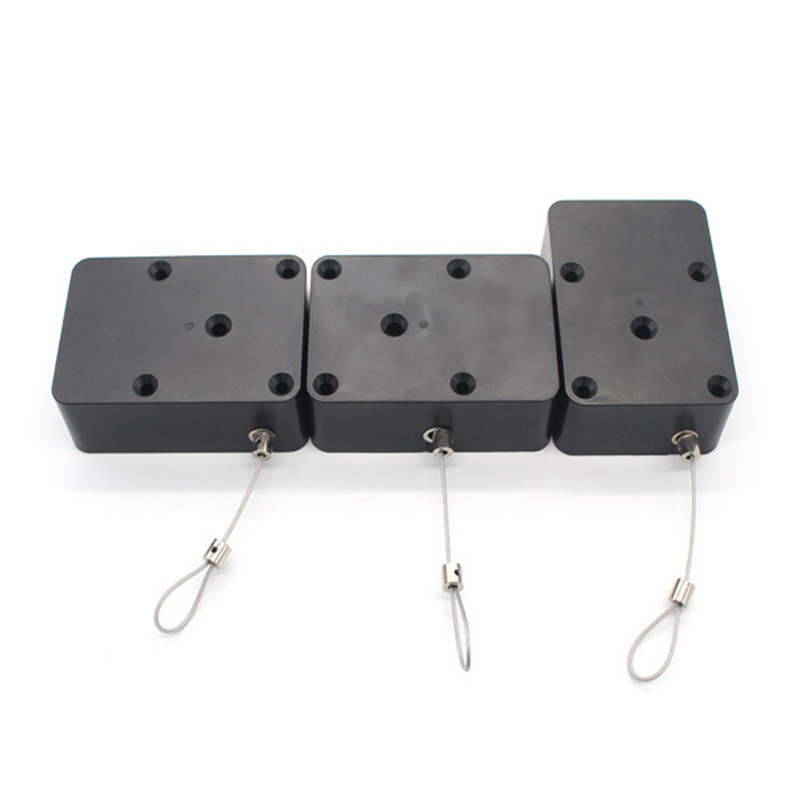

Retractable pull box is made of ABS plastic, with stainless steel cable winding onto the reel inside, this reel can work together with various of end fittings or mounting base / holder. It can be installed to the confined space on the back of display cabinet. Fixing can be made by screw or adhesive tape. Plastic retracting security recoiler is very popular and common used to protect selling merchandises in electronic stores and home & office supply stores before electronic security system launched, as it is easy to use and maintain, what is more, no false alarm and lower cost is the advantages compared to electronic security display.
Product Details:
Material(s): ABS, Stainless Steel

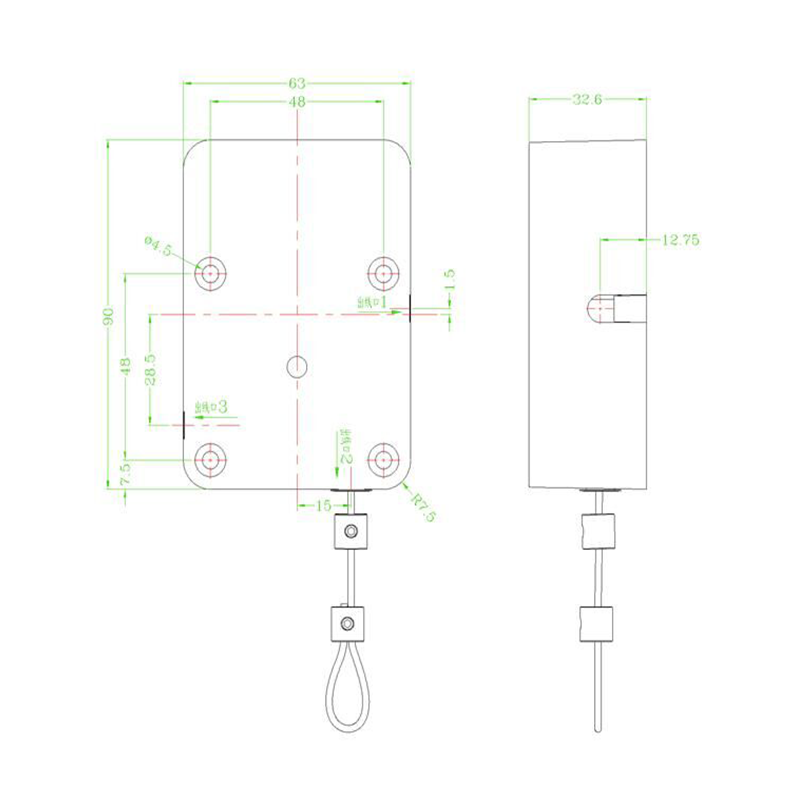

Size: 90x63x32.6mm
Box Color: Black, White
Box Shape: Cuboid / Rectangular Solid
Cable Covered: Transprent Nylon Coated
Cable Diameter: 1.2/1.5/1.8/2.0/2.5mm
Cable Extending Length: 100-400cm
Standard Cable: 1.8x3000mm
Inside Spring: SUS301 Material
Retracting Force: 260-800g
Bearing Strength: 100kg

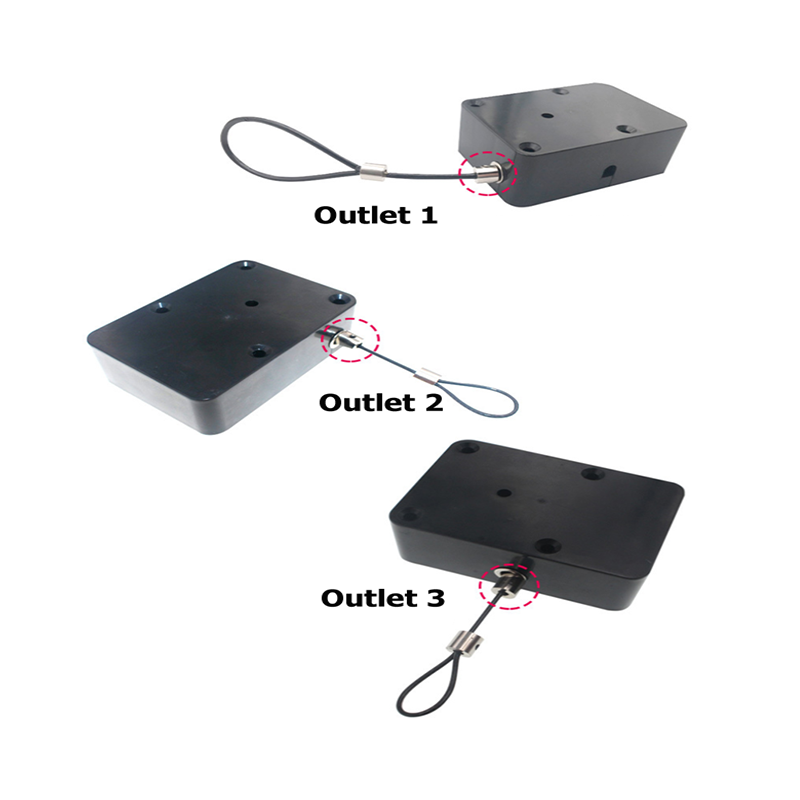

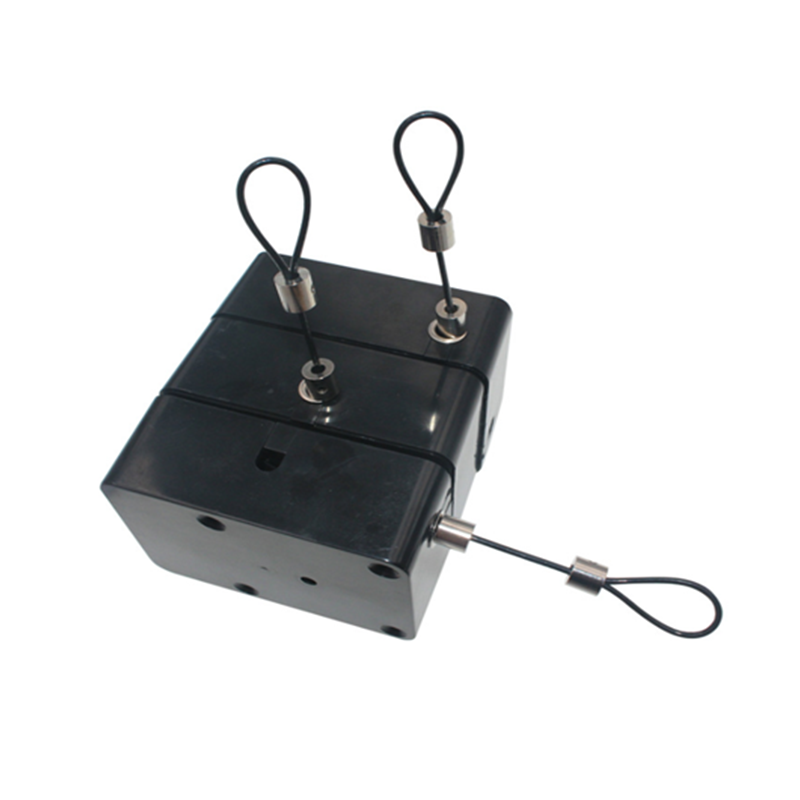

Outlet Direction: 3 Outlets
Accessory: L Shape Allen Key, 3M Adhesive Sticker

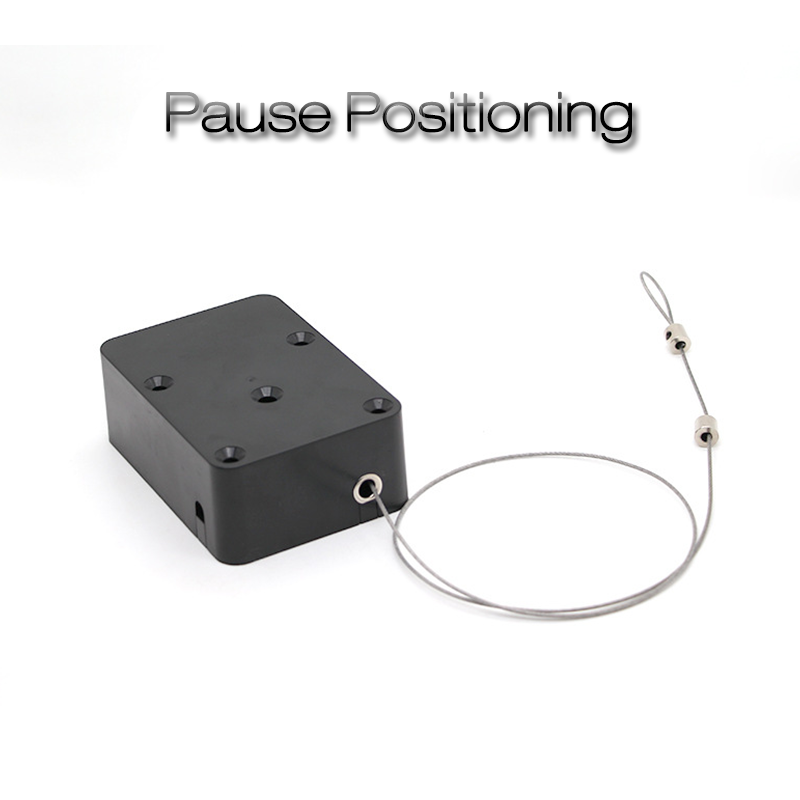

Brake System: With or Without Stop Locking Function
Installation: Screw Lock, 3M Glue (32x32x2mm)
Standard: 2 Copper Lock Connector (9x9MM), Cable 1.8x3000MM (OEM the thickest 2.5x1500mm)
Note: When opening 2 connectors simultaneously, be sure to hold the steel wire rope tightly. If it retracts, it will be scrapped.
Customized: cable material, cable diameter, cable length, end fitting

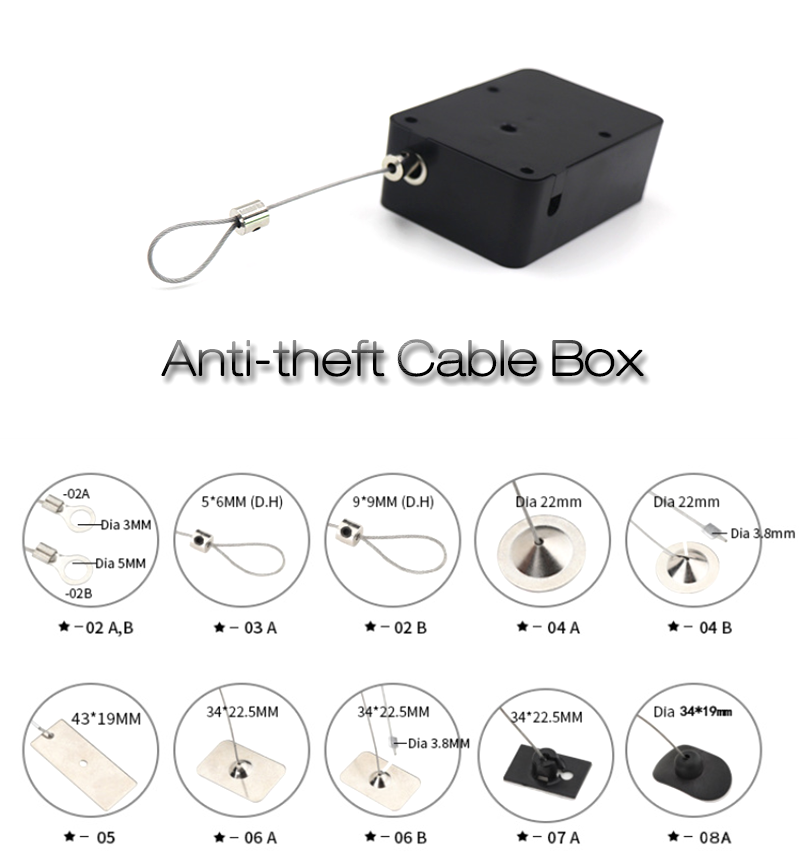

End Fitting Options:
1. Ring terminal: inner hole diameter 3mm, 4mm, 5mm for option
2. ABS end: grey round, diameter 30mm
3. ABS end: thick black round, diameter 30mm
4. ABS end: thin grey round, diameter 38mm
5. ABS end: white rectangle, 15*25mm
6. ABS end: thick white round, diameter 30mm
7. Metal end: rectangle shape, 35*22mm
8. Metal end: round shape, diameter 22mm
Product Features:
Big size of anti-theft retractor with custom loop/eyelet, iron/rubber/ABS plate
Flexible 3 outlets available for custom end accessories, easy to DIY
Good anti-shoplifting recoiler connecting the valuable items you would like to protect
Stainless steel spring inside with durable tensile force and long service life
With 2 square 3M stickers on back of pull box, 4 screws also ready if require
Retail or exhibition security display system made your products safely more
One L-Shaped allen key attached used for end wire loop with locking or unlocking
Popular and common used to protect selling merchandises in retail shops
Widely used in jewelry store, mobile/digital shop, supermarket, exhibition, etc
Manfacture Process:
1. Using 3M double-sided adhesive tape from original 3M factory, with high stickiness, no worries about fixing
2. Ultrasonic welding for every product, without any gaps, more firm and durable
3. Using the high-qualitied whirlpool retractable spring to ensure more than 100,000 times pull life
4. Stainless steel cable, built-up with 49pcs (7*7 structure)fine steel wire, more stand wear and tear
5. Every moving parts built in the box put with special oil to ensure the stainless steel cable lengthen and shorten smoothly
6. All the plastic parts mold one-time by full-automatic injection machine, reduce error to lowest, can be rated as Seiko secret agents
How to select your suitable pull box?
1. Select the box shape and color you need
2. Confirm the back with 3M sticker or by screw
3. let us know the retractable cable length and diameter
4. Choose the right ending for your product
