spocketguard
Modle Number: SPB01003
Country of Origin: China
Brand Name: Spocketguard
Product Description:

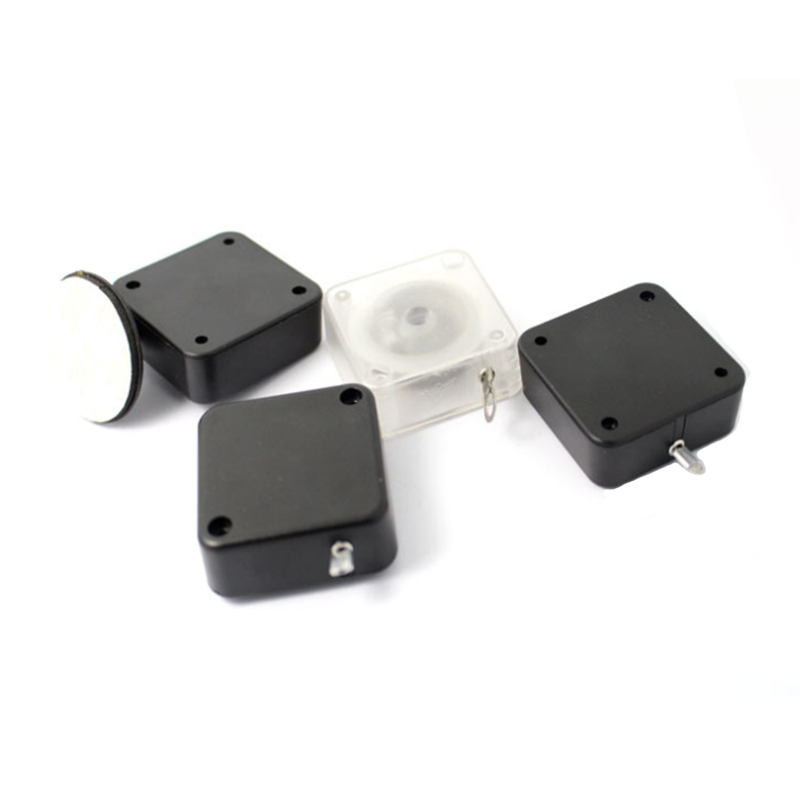

Anti-theft cable pull box is made of ABS plastic, with stainless steel cable winding onto the reel inside, this reel can work together with
various of end fittings or mounting base / holder. It can be installed to the confined space on the back of display cabinet. Fixing can be

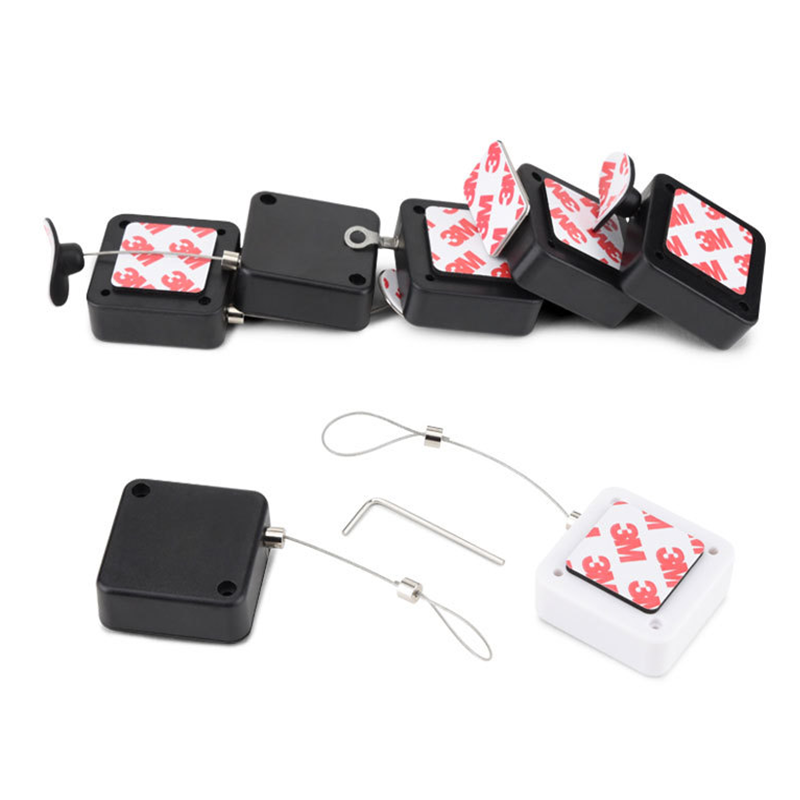

made by screw or adhesive tape. Pull box recoiler surface with strong 3M double-sided sticker or fixed to a shelter, the counter
contraction rope buckle with ring at one end, a variety of forms such as anti-theft lock screw, stick and join of commodities, we can make
according to the different kinds of joint-mode, to meet various needs. This products mainly used in supermarket, retail shops and
exhibition to prevent the showing objects, such as jewelry, bracelet, cosmetic, clocks and watches, glasses, digital consumer and other
small items being stolen.
Product Details:
Material(s): ABS, Stainless Steel

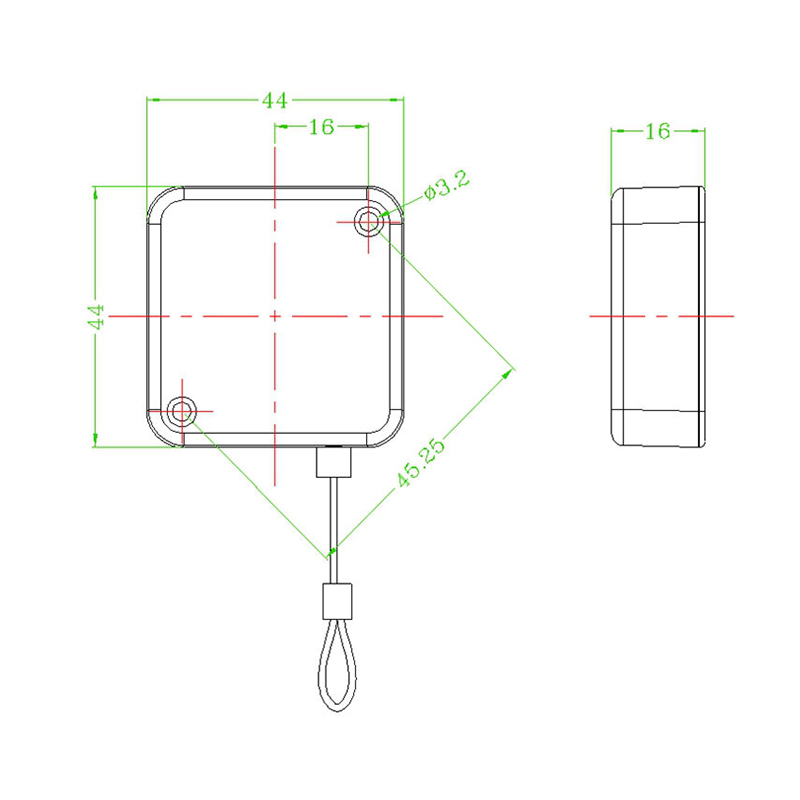

Size: 44x44x16mm
Box Color: Black, White
Box Shape: Square
Cable Covered: Transprent Nylon Coated
Cable Diameter: 0.45/0.6/0.9/1.2mm
Cable Extending Length: 60-150cm
Standard Cable: 0.9x900mm
Inside Spring: SUS301 Material
Retracting Force: 150g
Bearing Strength: 30kg
Accessory: L Shape Allen Key, 3M Adhesive Sticker
Brake System: With or Without Stop Locking Function
Installation: Screw Lock, 3M Glue
Standard: 2 Brass Lock Connector (5x6MM), Cable 0.9x900MM (OEM cable length can be 1.5m)
Note: When opening 2 connectors simultaneously, be sure to hold the steel wire rope tightly. If it retracts, it will be scrapped.
Customized: cable material, cable diameter, cable length, end fitting

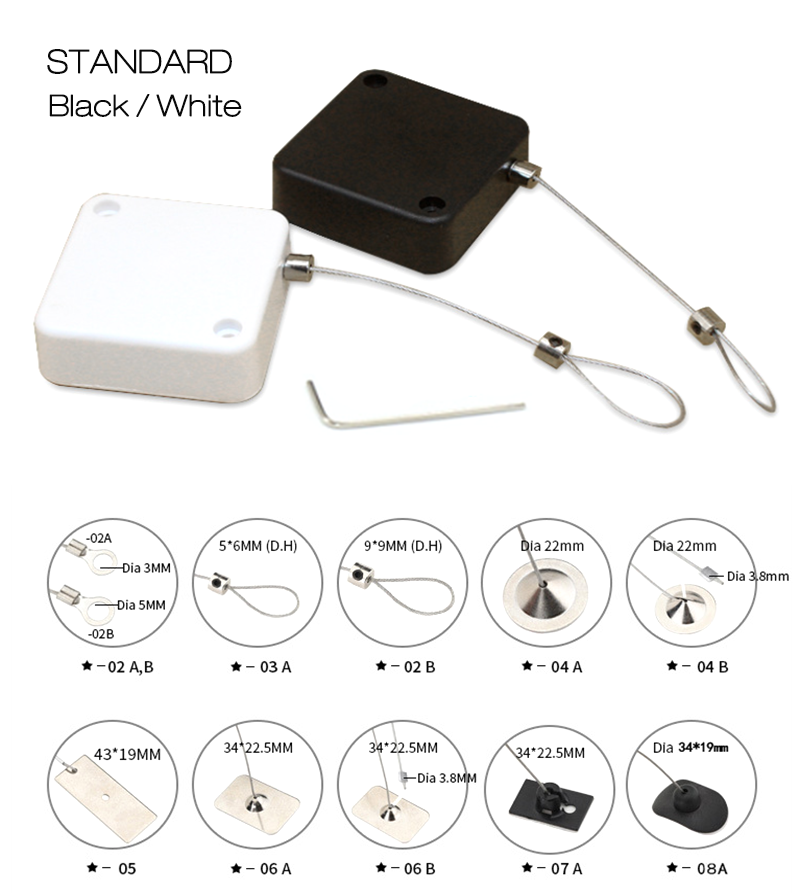

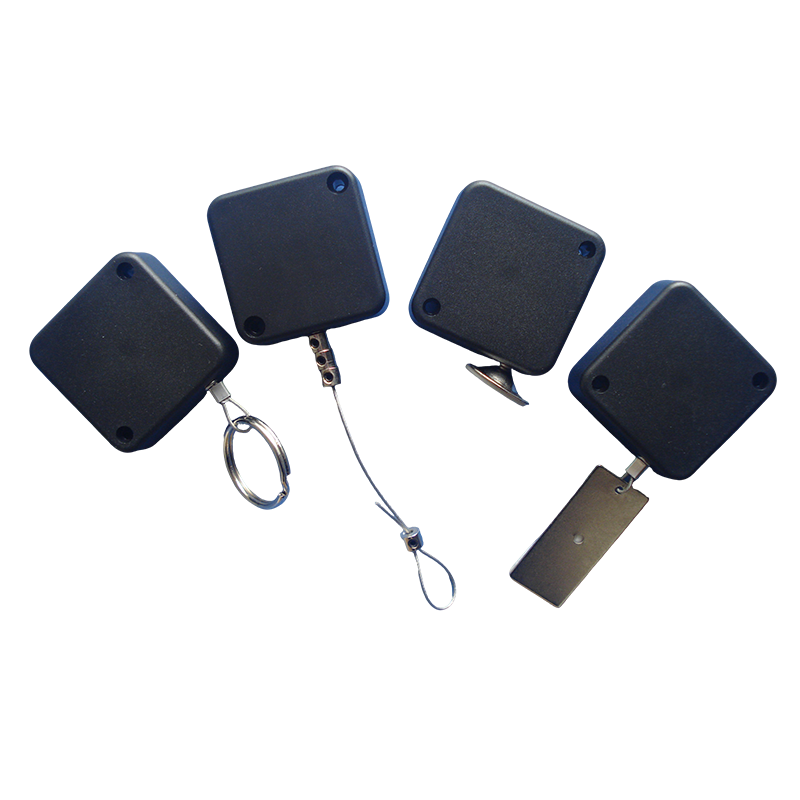

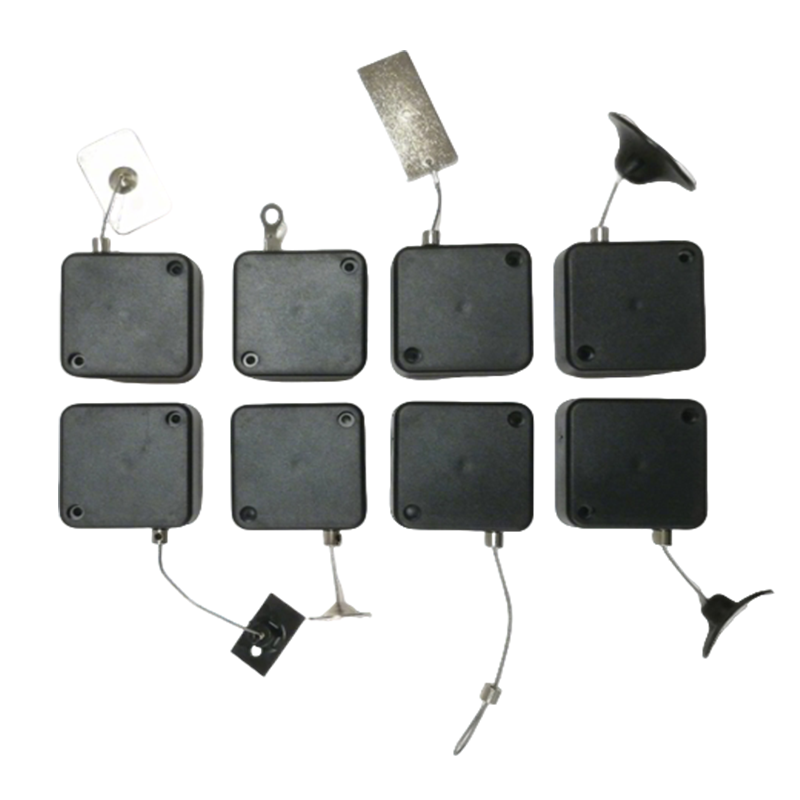

End Accessories: ring terminal (hole dia 3/5mm), ball shaped casting (3.8mm), adjustable loop with metallic lock and allen key,
customized cable lenth with fixed end loop, key ring, cable loop, magnetic clasps, key hook, metal plate with screw installation,
adjustable loop covered with silicone hose, circular adhesive ABS plate (30/38mm), rectangular adhesive ABS plate (25x15mm), sticky
flexible rubber tips (33x19mm), circular sticky metal plate (22/38mm), rectangular adhesive metal plate (35x20mm), rectangular sticky
metal plate (45x19mm)
Product Features:

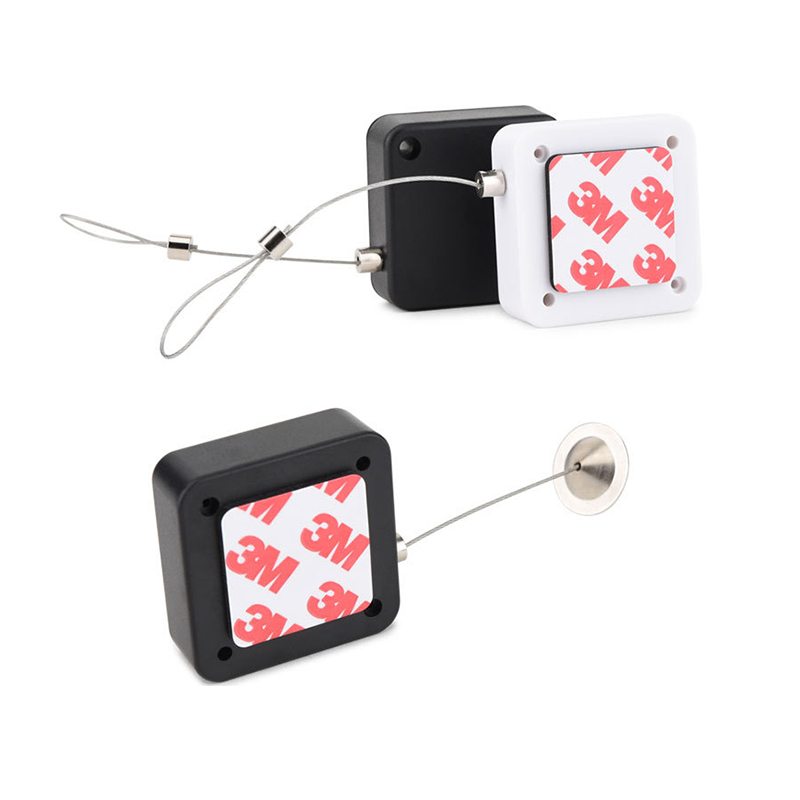

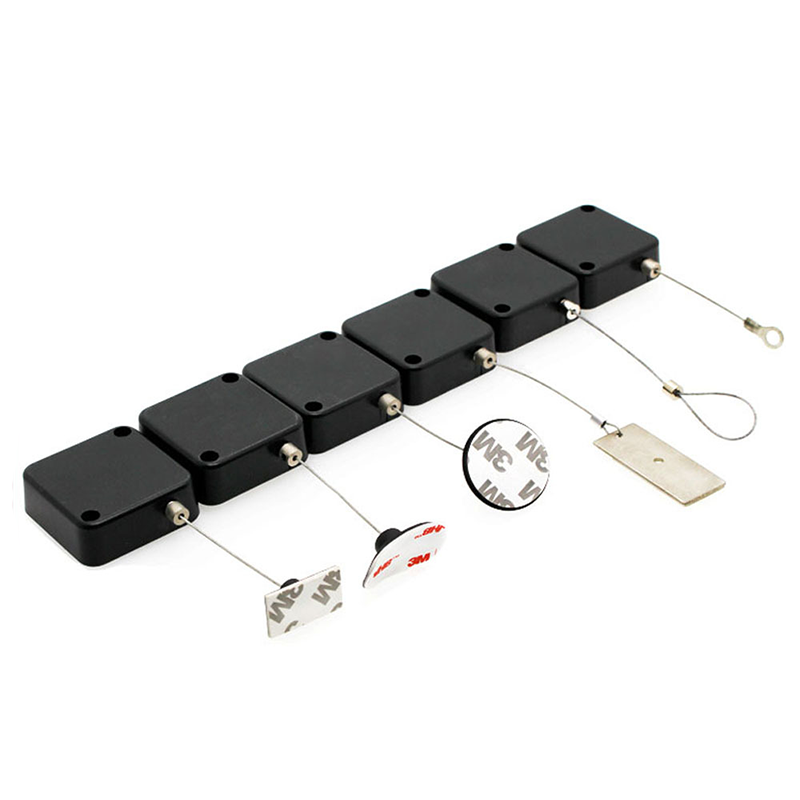

Hot square display retractor with custom loop/eyelet, iron/rubber/ABS plate
Good safety device connecting the valuable items you would like to protect
Stainless steel spring inside with durable tensile force and long service life

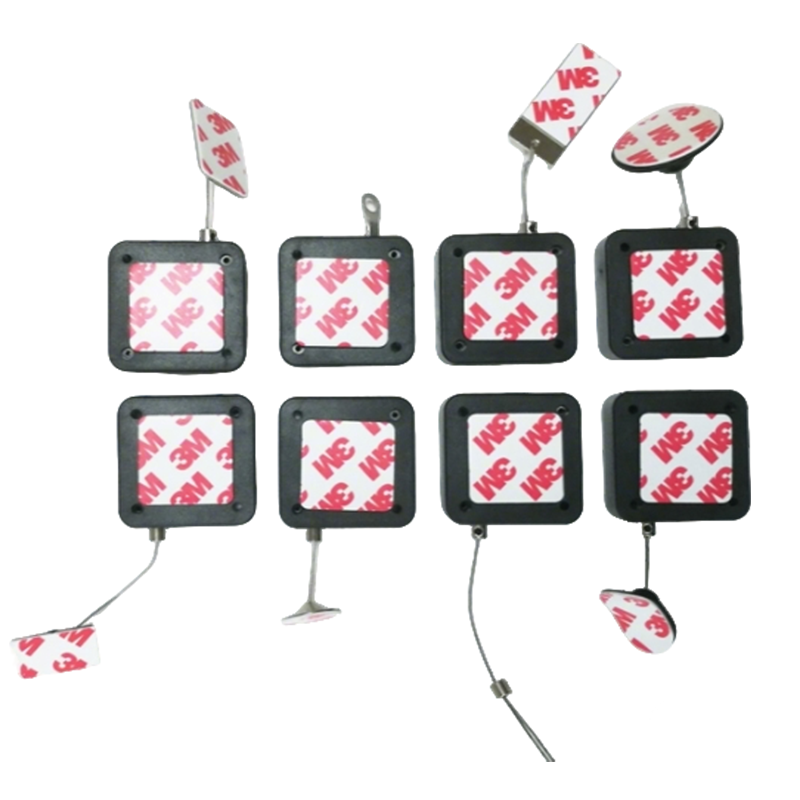

With 3M glue on back of box or 2 screws (hole 3.2mm) installed if require
Or use double-sided adhesive to paste and install, very easy and convenient

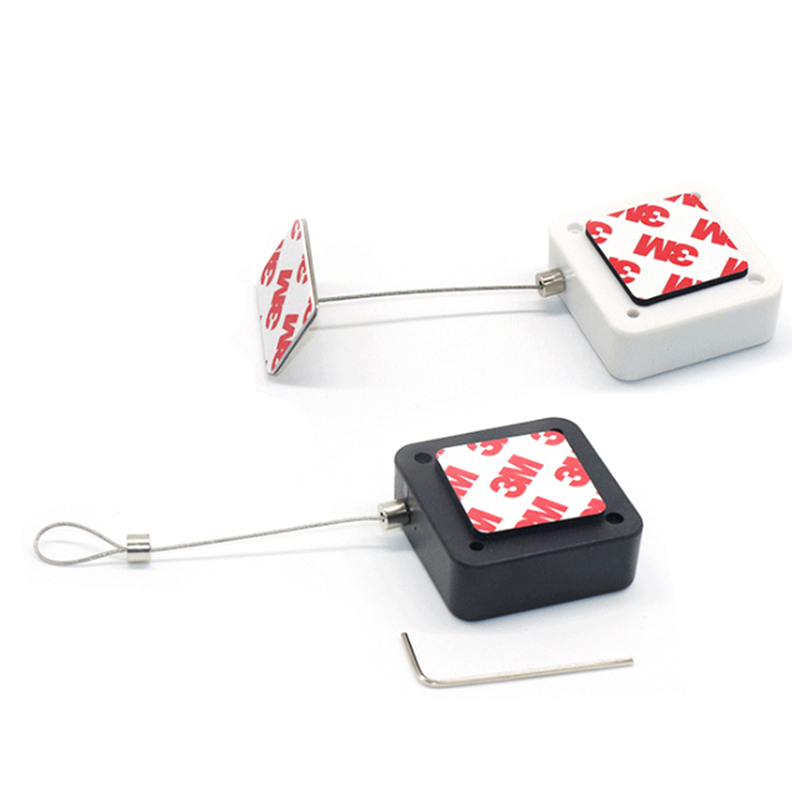

Small L-Shaped allen key is required for locking and unlocking

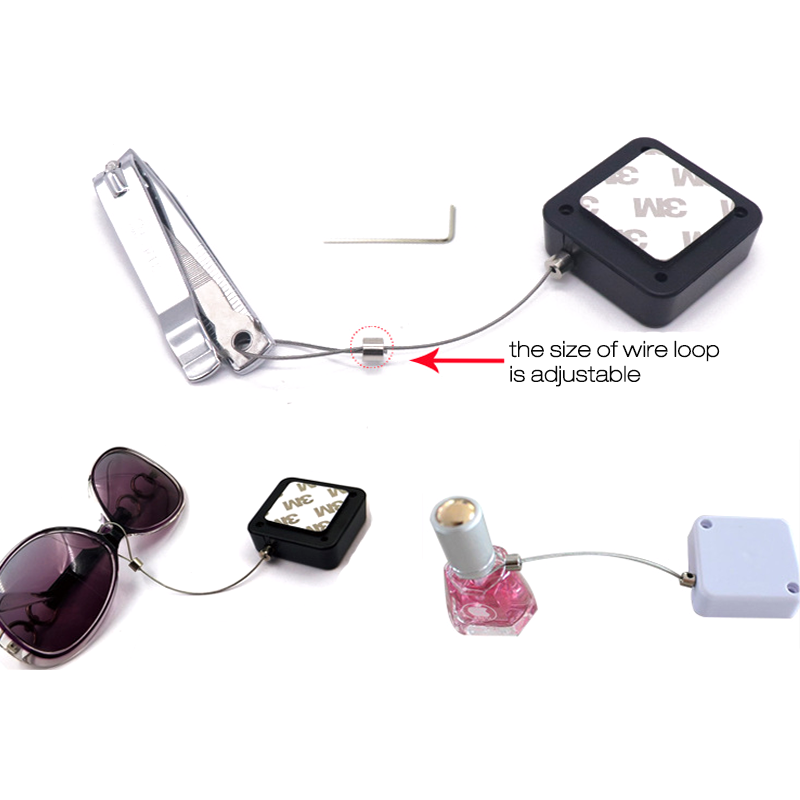

Popular anti-theft pull box for rings/electronics/cosmetic/glasses display
Widely used in mobile shop, store, digital shop, supermarket, exhibition, etc
Manfacture Process:
1. Using 3M double-sided adhesive tape from original 3M factory, with high stickiness, no worries about fixing
2. Ultrasonic welding for every product, without any gaps, more firm and durable
3. Using the high-qualitied whirlpool retractable spring to ensure more than 100,000 times pull life
4. Stainless steel cable, built-up with 49pcs (7*7 structure)fine steel wire, more stand wear and tear
5. Every moving parts built in the box put with special oil to ensure the stainless steel cable lengthen and shorten smoothly
6. All the plastic parts mold one-time by full-automatic injection machine, reduce error to lowest, can be rated as Seiko secret agents
How to select your suitable pull box?
1. Select the box shape and color you need
2. Confirm the back with 3M sticker or by screw
3. let us know the retractable cable length and diameter
4. Choose the right ending for your product
