spocketguard
Modle Number: SPB01006
Country of Origin: China
Brand Name: Spocketguard
Product Description:
Loss prevention pull box is made of ABS plastic, with stainless steel cable winding onto the reel inside, this reel can work together with
various of end fittings or mounting base / holder. It can be installed to the confined space on the back of display cabinet. Fixing can be
made by screw or adhesive tape. Plastic display pull box recoiler surface with strong 3M double-sided sticker or fixed to a shelter, the
counter contraction rope buckle with ring at one end, a variety of forms such as anti-theft lock screw, stick and join of commodities, we
can make according to the different kinds of joint-mode, to meet various needs. This products mainly used in super market, retail shops
and exhibition to prevent the showing objects, such as jewelry, bracelet, clocks and watches, glasses, digital consumer and other small
items being stolen.
Product Details:
Material(s): ABS, Stainless Steel

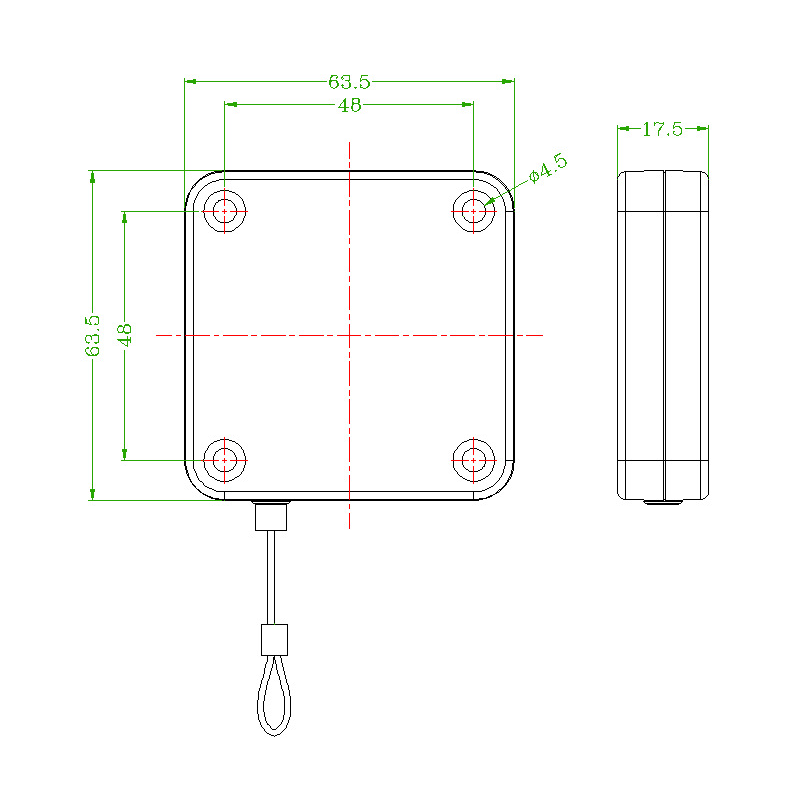

Size: 63.5x63.5x17.5mm
Box Color: Black, White
Box Shape: Square

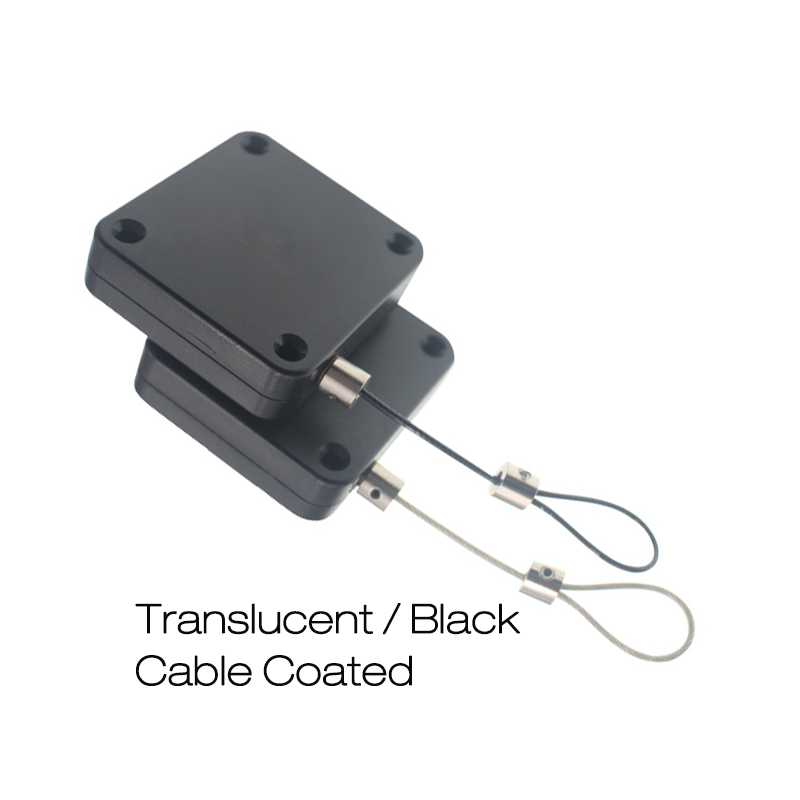

Cable Covered: Transprent Nylon Coated
Cable Diameter: 0.6/0.9/1.2/1.5/1.8/2.0mm
Cable Extending Length: 40-400cm
Standard Cable: 0.9x1000mm
Inside Spring: SUS301, 0.2X8x1200mm
Maximum Breaking Force: 50KG

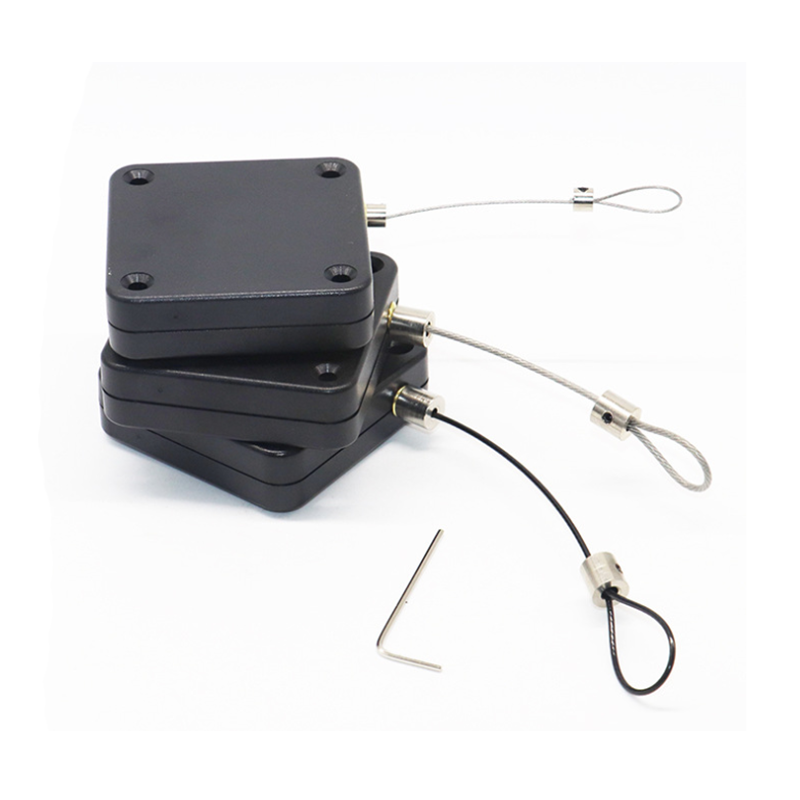

Accessory: L Shape Allen Key, 3M Adhesive Sticker
Brake System: With or Without Stop Locking Function

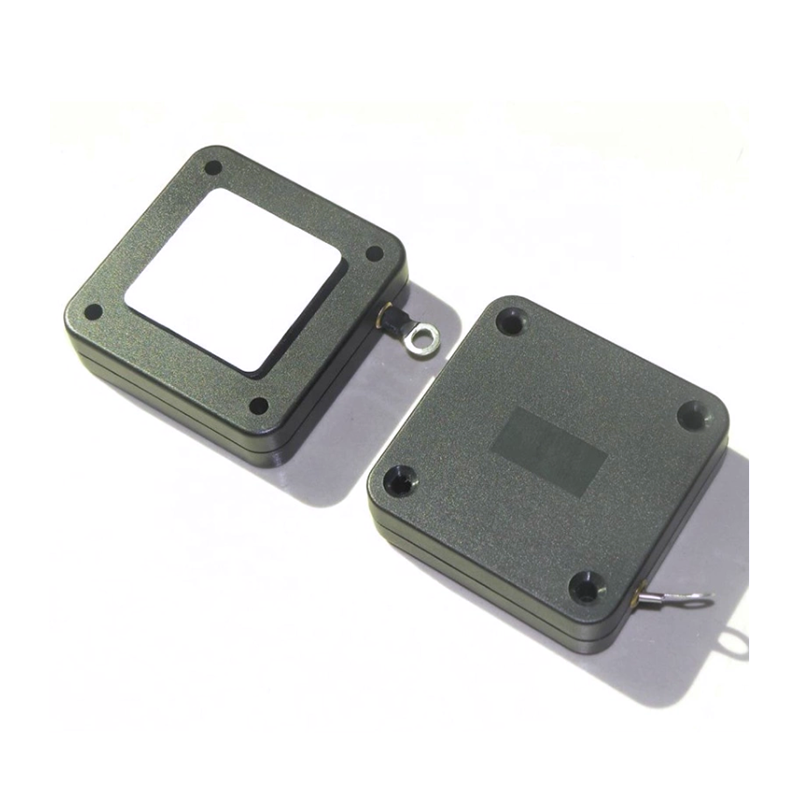

Installation: Screw Lock, 3M EVA Sticker
Net Weight: 70g
Standard: 2 Brass Stopper (5x6MM), Cable 0.9x1000MM

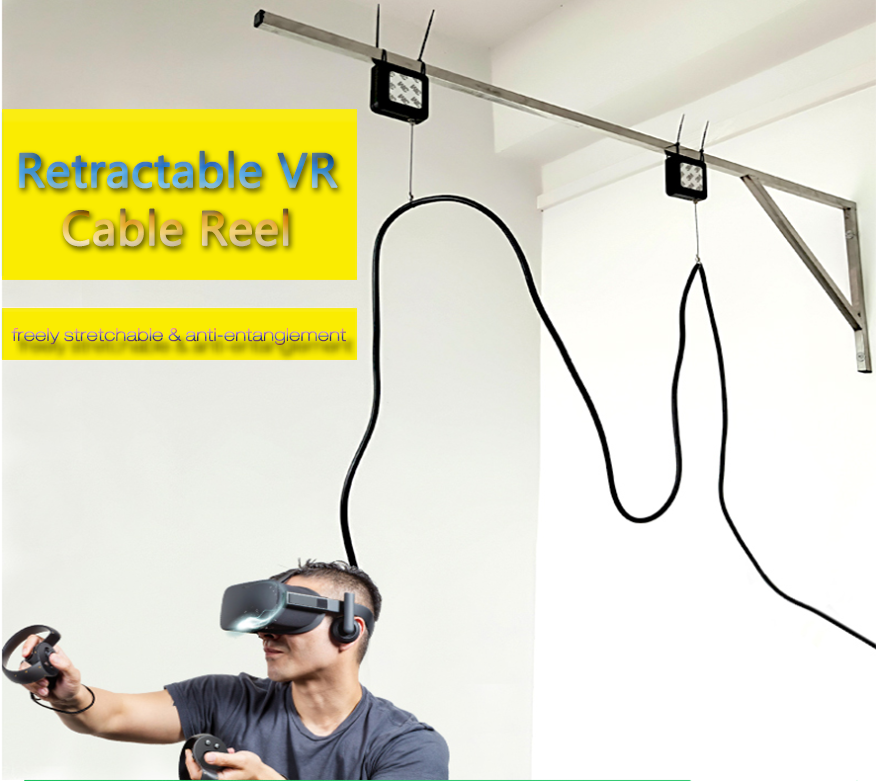

VR Cable Pulley Available: 1M/Pull 400G, 2M/Pull 350G, 3M/Pull 260G, 4M/Pull 150G, 5M/Pull 120G, 6M/Pull 100G
Note: When opening 2 connectors simultaneously, be sure to hold the steel wire rope tightly. If it retracts, it will be scrapped.

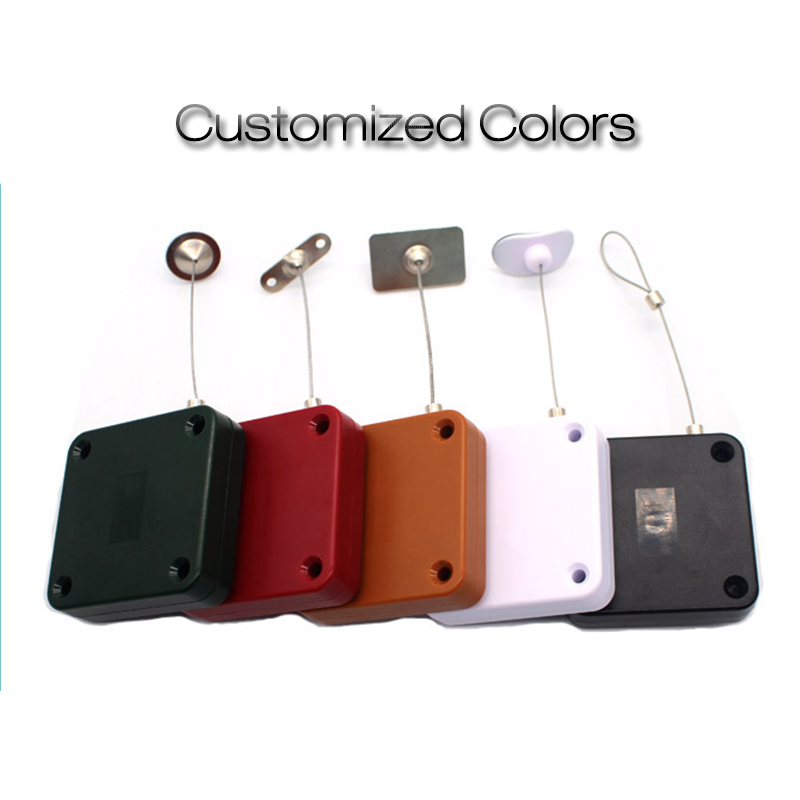

Customized: box color, cable material, cable diameter, cable length, end fitting

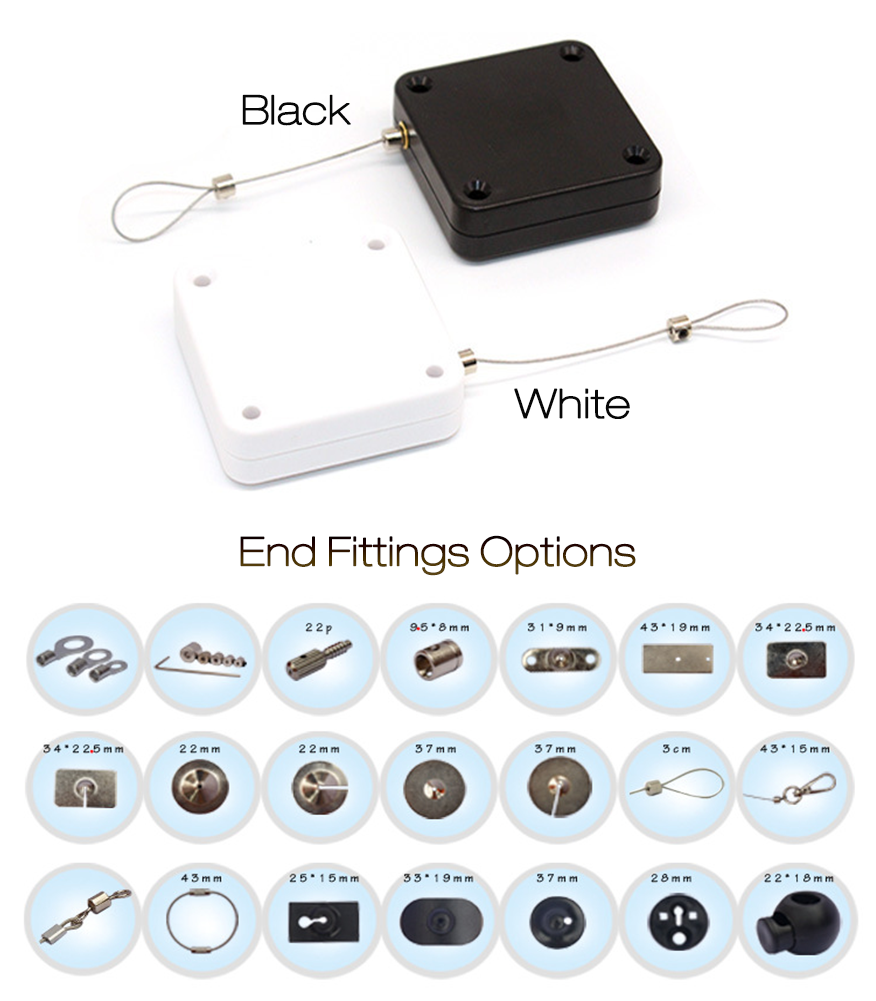

Available Ends:

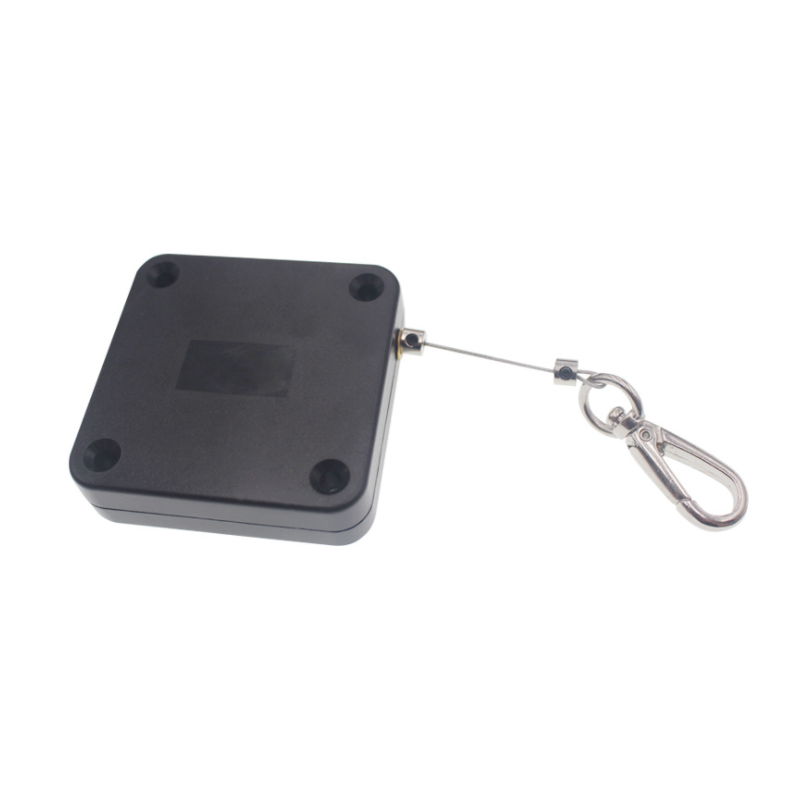

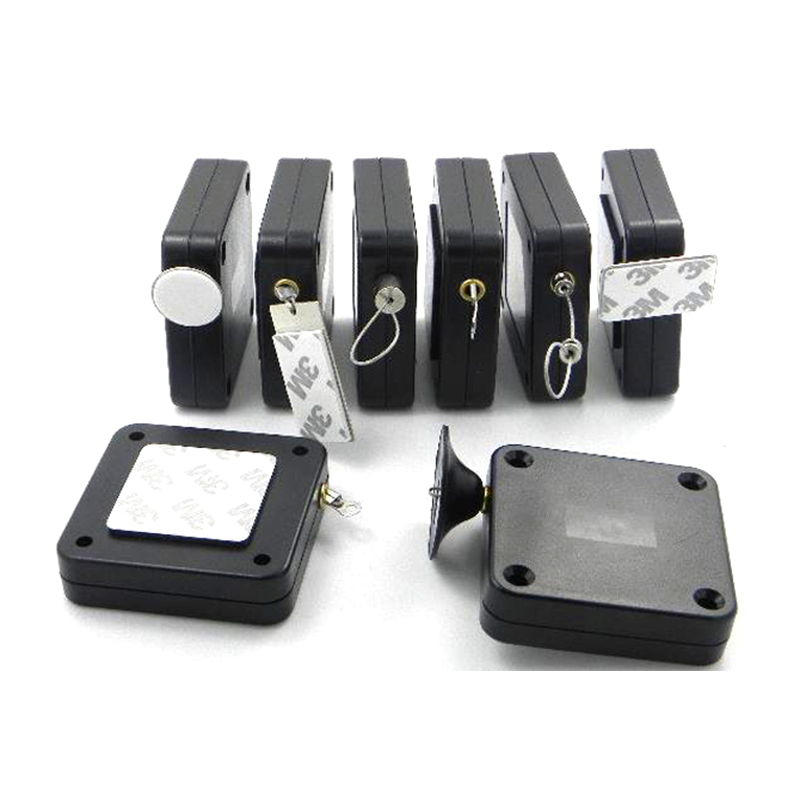

circular adhesive ABS plate (OD30/38mm), rectangular adhesive ABS plate (25x15mm), circular sticky metal plate (OD22/38mm), rectangular adhesive metal plate (35x20mm), rectangular sticky metal plate (45x19mm), perforated metal plate with screw installation eyelet terminal (hole dia 3/5mm), ball shaped casting (OD3.8mm), adjustable loop with metallic lock and allen key, fixed wire loop, M6/M8 flat head screw, fixed wire loop with key ring, fixed wire loop with cable ring, side hole hardware, magnetic clasps, snap key hook, adjustable loop covered with silicone hose, sticky flexible rubber tip (33x19mm)
Product Features:
Hot square display retractor with custom loop/eyelet, iron/rubber/ABS plate
Good safety device connecting the valuable items you would like to protect
Stainless steel spring inside with durable tensile force and long service life

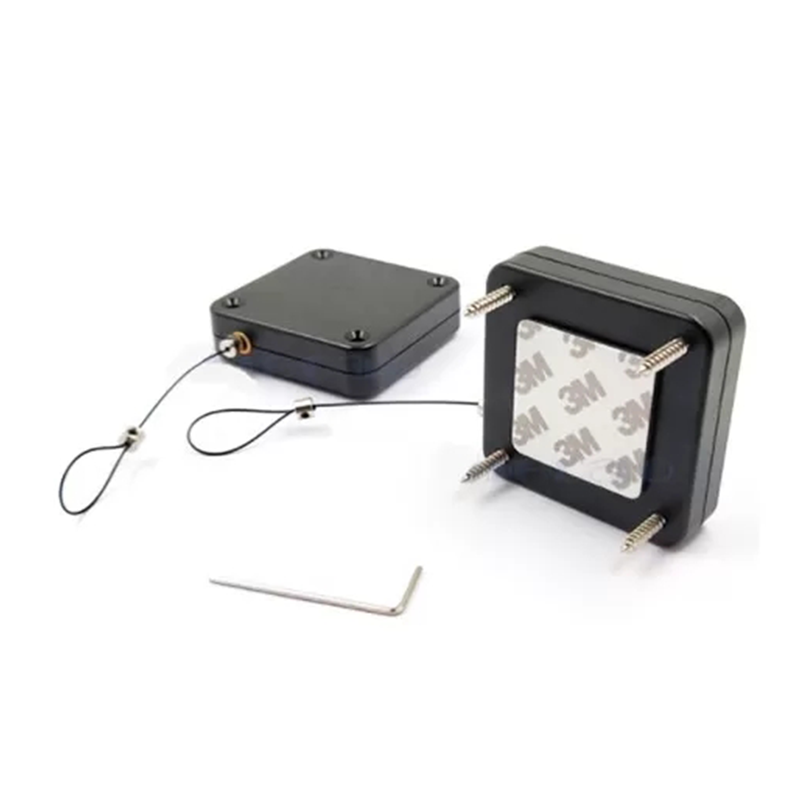

With 3M glue on back surface or 4 screws (hole 4.5mm) installed if require

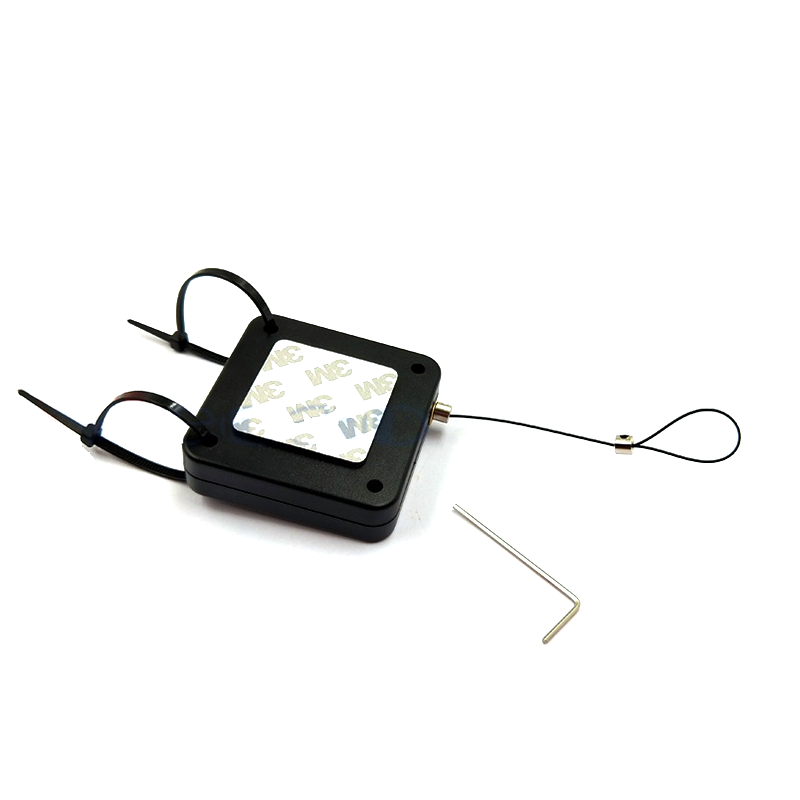

Or use double-sided adhesive to paste and install, very easy and convenient
Small L-Shaped allen key is required for locking and unlocking
Popular anti-theft pull box for rings/electronics/cosmetic/glasses display
Widely used in mobile shop, store, digital shop, supermarket, exhibition, etc
Manfacture Process:
1. Using 3M double-sided adhesive tape from original 3M factory, with high stickiness, no worries about fixing
2. Ultrasonic welding for every product, without any gaps, more firm and durable
3. Using the high-qualitied whirlpool retractable spring to ensure more than 100,000 times pull life
4. Stainless steel cable, built-up with 49pcs (7*7 structure) fine steel wire, more stand wear and tear
5. Every moving parts built in the box put with special oil to ensure the stainless steel cable lengthen and shorten smoothly
6. All the plastic parts mold one-time by full-automatic injection machine, reduce error to lowest, can be rated as Seiko secret agents
How to select your suitable pull box?
1. Select the box shape and color you need
2. Confirm the back with 3M sticker or by screw
3. let us know the retractable cable length and diameter
4. Choose the right ending for your product
