spocketguard
Modle Number: SPB01005
Country of Origin: China
Brand Name: Spocketguard
Product Description:

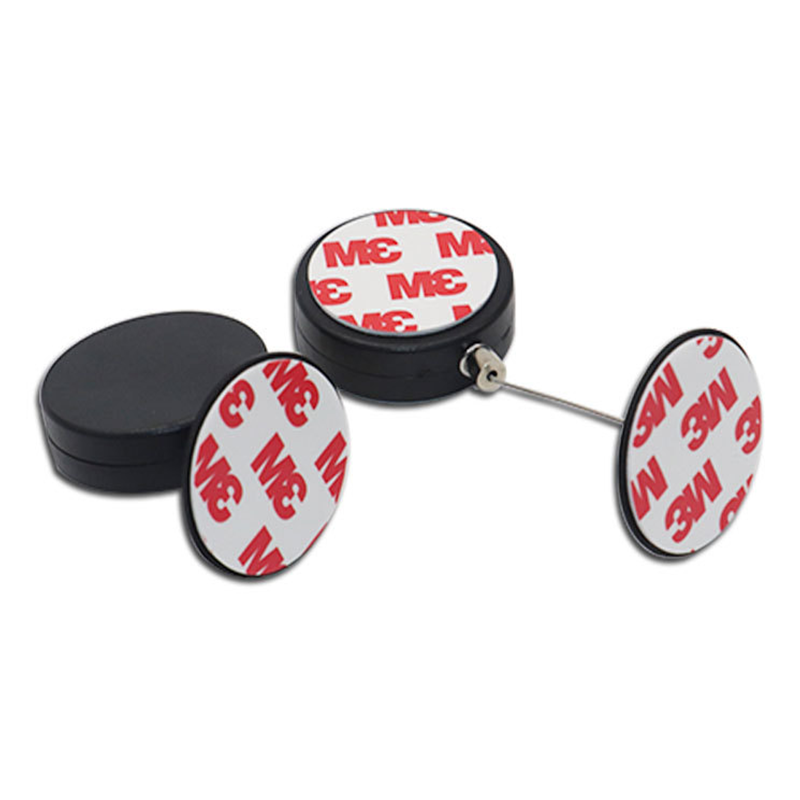

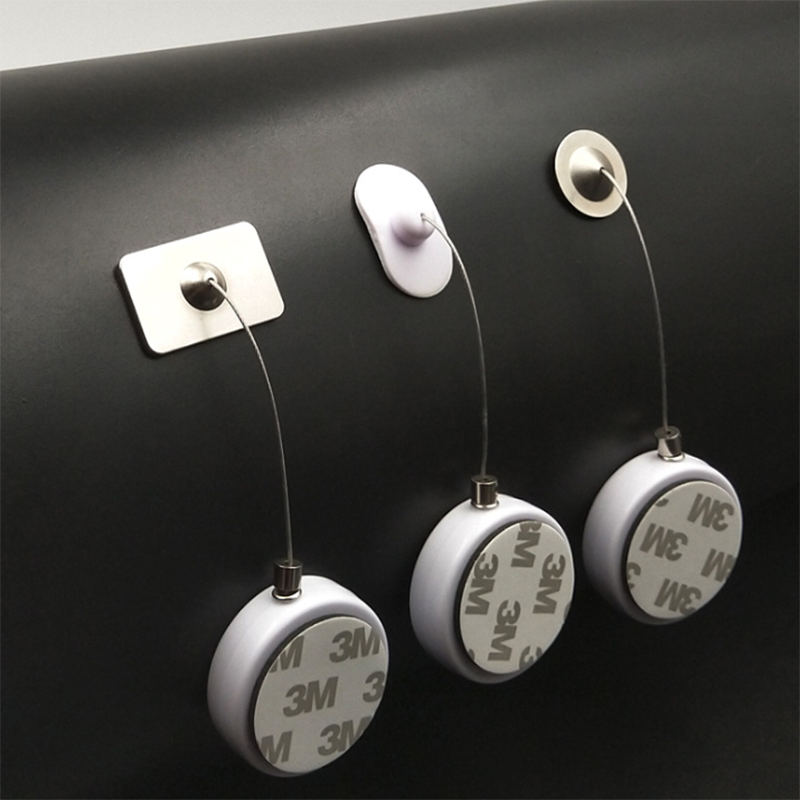

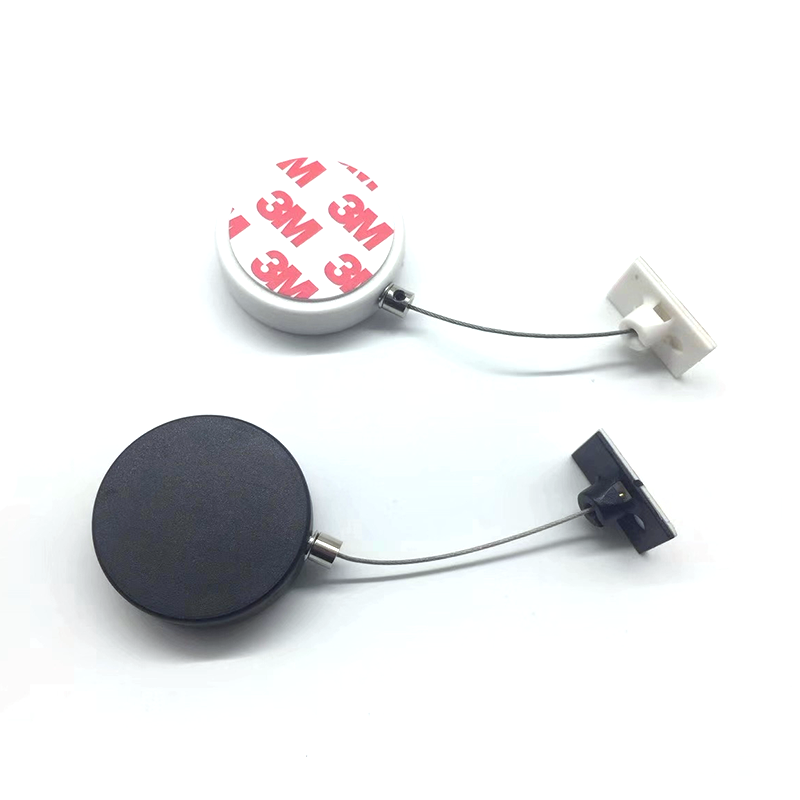

Anti theft pull box recoiler is made of ABS plastic, with stainless steel cable winding onto the reel inside, this reel can work together with
various of end fittings or mounting base / holder. It can be installed to the confined space on the back of display cabinet. Fixing can be
made by screw or adhesive tape. These are very smart and popular retractable device with sticker connecting the merchandises which
effectively prevent showing products from being stolen in supermarket, shop, store and exhibition, etc. The cable inside is usually made of
stainless steel material and easily allows customers to hold and check the item in hand freely without dropping. Different pull force is
available according to different goods and end accessories you needed.
Product Details:
Material(s): ABS, Stainless Steel

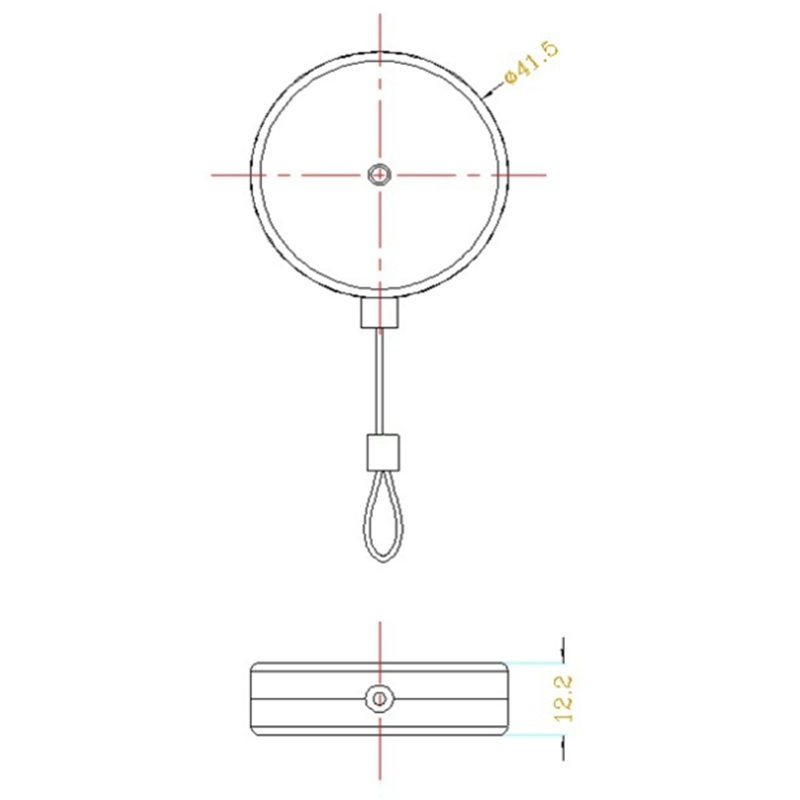

Size: 41.5x12.2mm

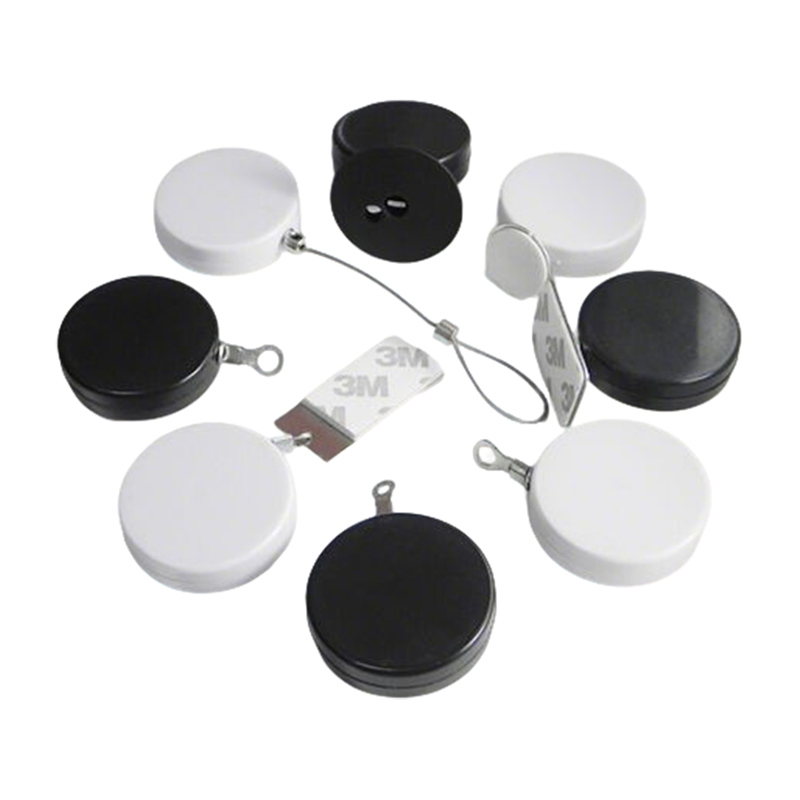

Box Color: Black, White
Box Shape: Round
Surface: Flat Smooth
Cable Covered: Transprent Nylon Coated
Cable Diameter: 0.45/0.6/0.9mm
Cable Length: 40-100cm
Standard Cable: 0.9x900mm
Inside Spring: SUS301 Material
Max Pulling Force: 30kg

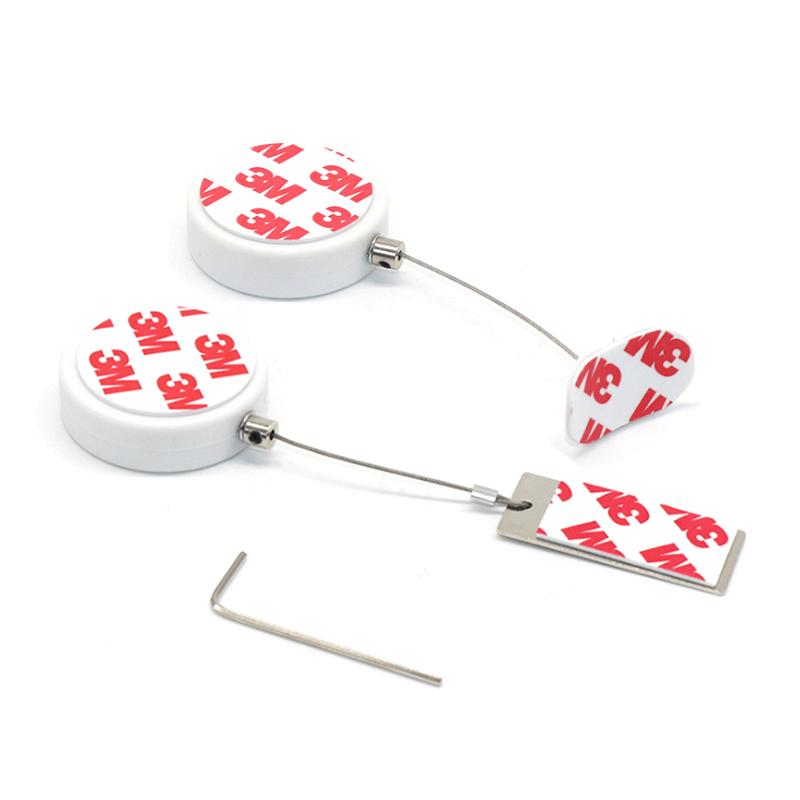

Installation: L Shape Allen Key, 3M Adhesive Tape
Brake System: With or Without Stopc Locking Function

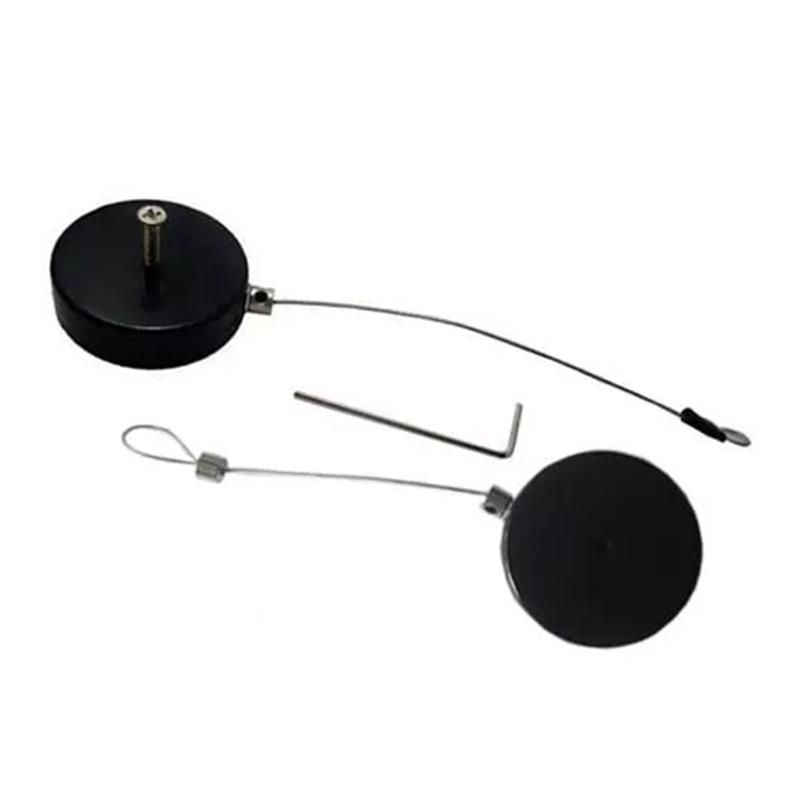

Installation: Screw Lock, 3M Glue
Function: Security Display, Anti-theft, Anti-lost, Anti-drop, Protection

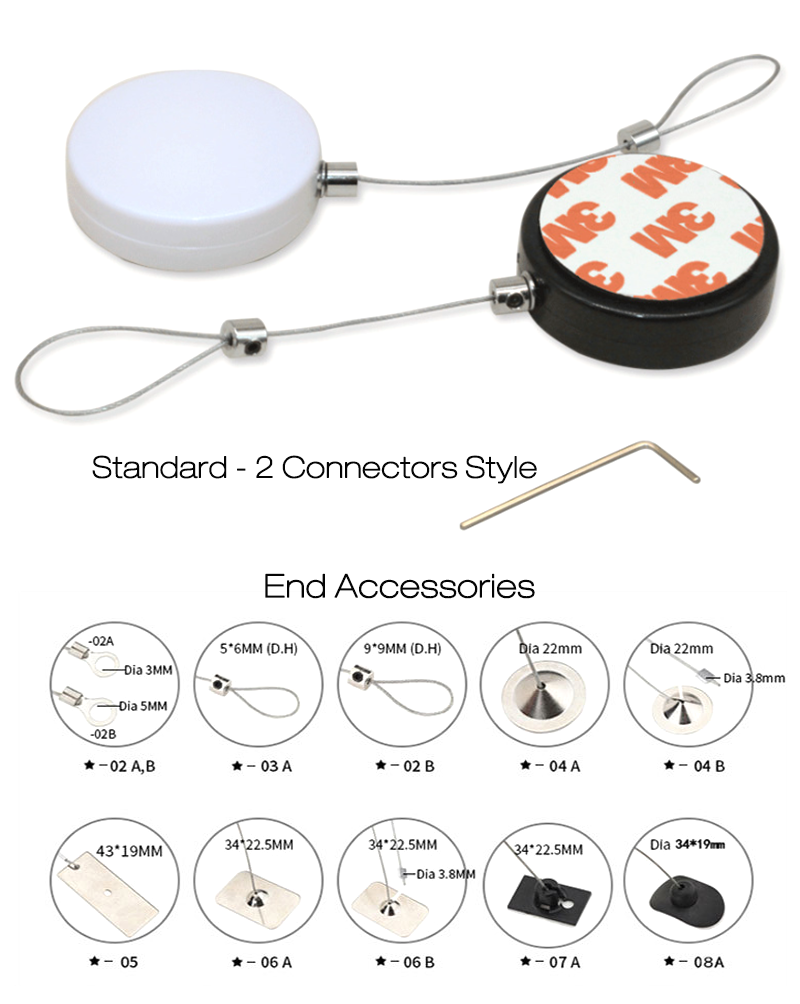

Standard: 2 Copper Lock Connector (5x6MM), Cable 0.9x900MM
Note: When opening 2 connectors simultaneously, be sure to hold the steel wire rope tightly. If it retracts, it will be scrapped.
Customized: cable material, cable diameter, cable length, end fitting

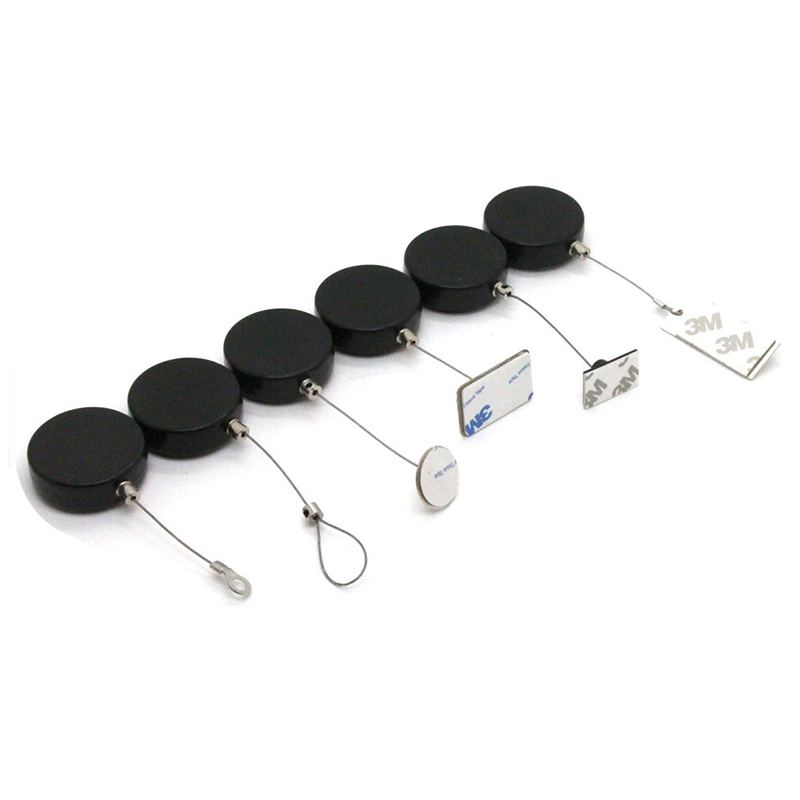

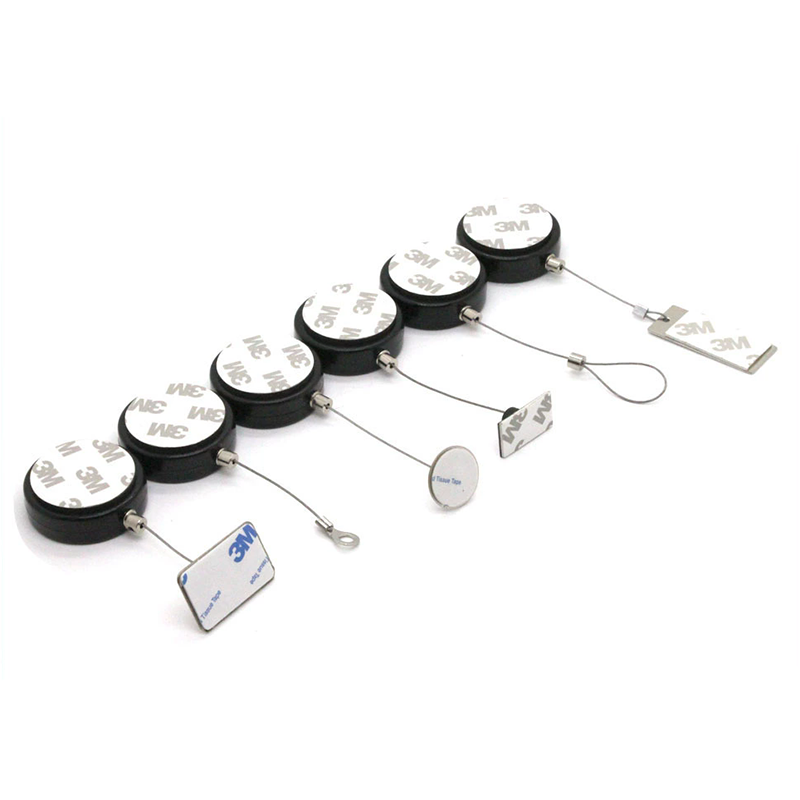

Common Connectors Options:
1. Ring terminal: inner hole diameter 3mm, 4mm, 5mm for option
2. ABS end: grey round, diameter 30mm
3. ABS end: thick black round, diameter 30mm
4. ABS end: thin grey round, diameter 38mm
5. ABS end: white rectangle, 15*25mm
6. ABS end: thick white round, diameter 30mm

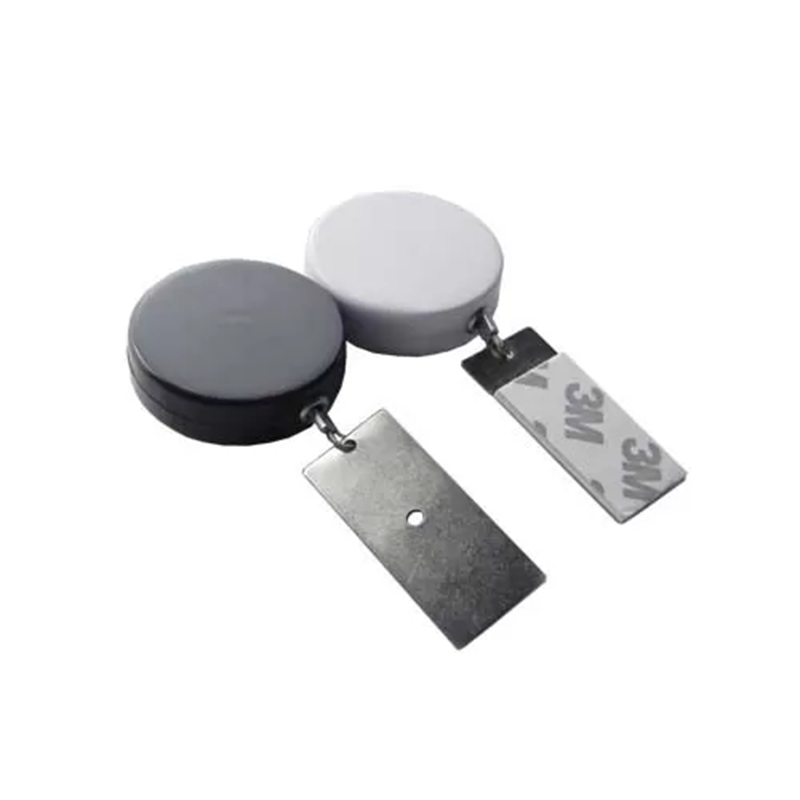

7. Metal end: rectangle shape, 35*22mm
8. Metal end: round shape, diameter 22mm
9. Metal end: round shape, diameter 37mm
10. Adjustable metal end: 48*18mm, 43*19mm for option
11. Adjustable loop end: fixed by locker 5*6mm or 9*9mm for option
12. Adjustable ring end: by adjustable locker
13. Loop end: by fixed crimp
14. Magnetic end: cubic kind, 40*25*22mm
Product Features:
Square shape security retractor with custom loop/eyelet, iron/rubber/ABS plate
Solutions to secure and maintain your visual merchandising, increase sales value
With 3M EVA sticker on back or fix by screw as your choose, easy to install
Stainless steel spring inside with durable tensile force and long service life
An industrial L key is required for locking and unlocking, standard cord loop end by connector
Widely used in supermarket, retail store, exhibition show, mobile shop, digital shop, image shop,etc
Manfacture Process:
1. Using 3M double-sided adhesive tape from original 3M factory, with high stickiness, no worries about fixing
2. Ultrasonic welding for every product, without any gaps, more firm and durable
3. Using the high-qualitied whirlpool retractable spring to ensure more than 100,000 times pull life
4. Stainless steel cable, built-up with 49pcs(7*7 structure)fine steel wire, more stand wear and tear
5. Every moving parts built in the box put with special oil to ensure the stainless steel cable lengthen and shorten smoothly
6. All the plastic parts mold one-time by full-automatic injection machine, reduce error to lowest, can be rated as Seiko secret agents
How to select your suitable pull box?
1. Select the box shape and color you need
2. Confirm the back with 3M sticker or by screw
3. let us know the retractable cable length and diameter
4. Choose the right ending for your product
