spocketguard
Modle Number: SPB01017
Country of Origin: China
Brand Name: Spocketguard
Product Description:
Anti Theft Retractor also known as stretching cable box, cable retractor, recoilers, security tether and anti-theft pull box, it can be
broadly used for point of retail product positioning, purchase security, wire harness positioning in electronic equipment, equipment
counterbalancing, signage support, and product or parts feeding, it can be used in supermarkets, retail shops and exhibition and some
other daily products display, aim to prevent the showing objects, like jewelry, glasses, watch, digital merchandises and other small
valuable item being stolen. It can work together with any connectors or mounting base / holder or custom request. The box can be fixed
on the back of display cabinet by screw or adhesive tape.
Product Details:
Material(s): ABS, Stainless Steel

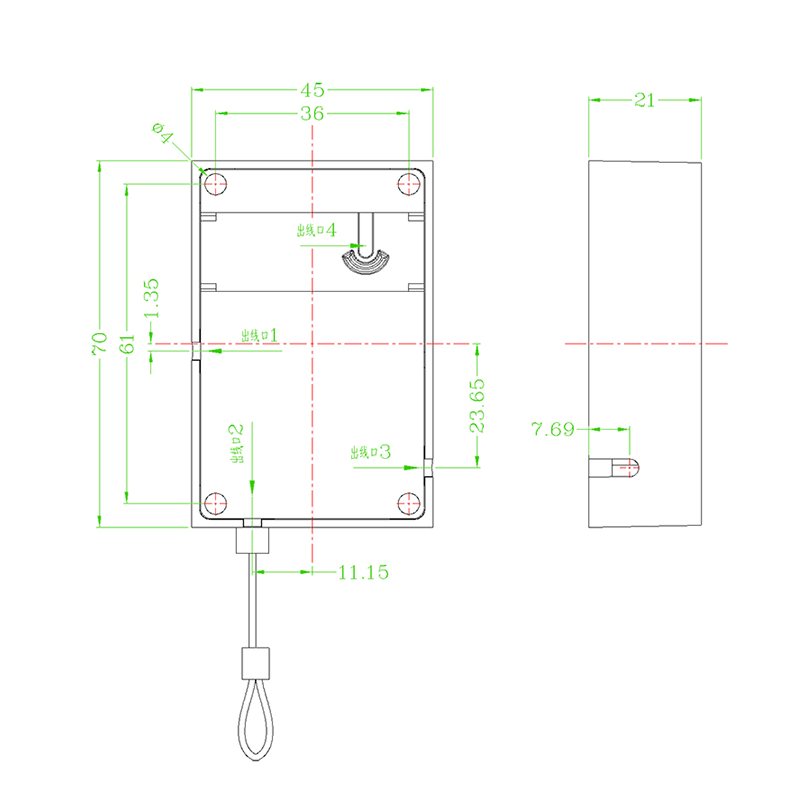

Size: 70x45x21mm

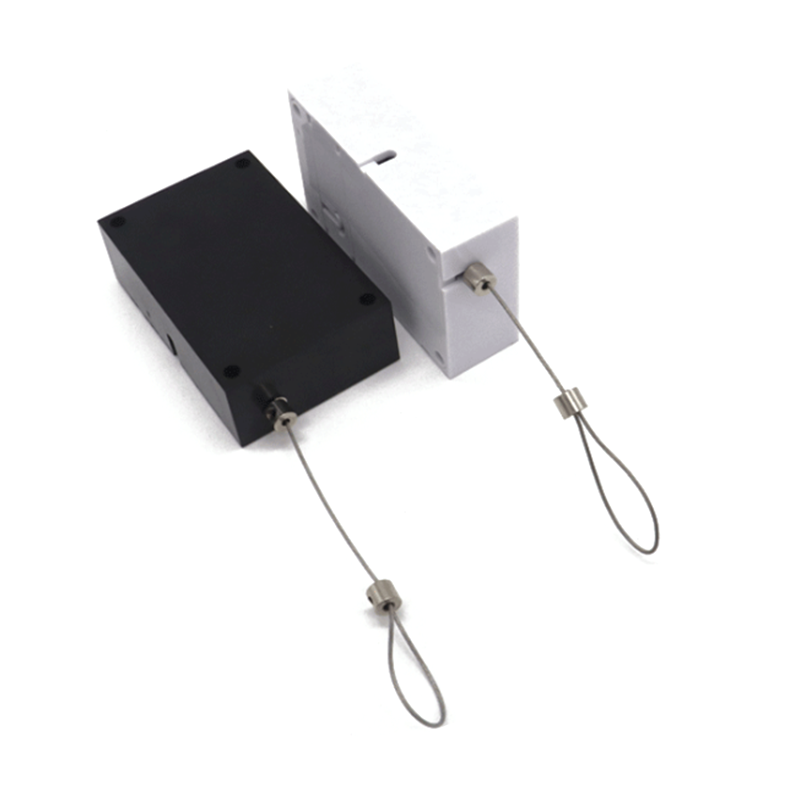

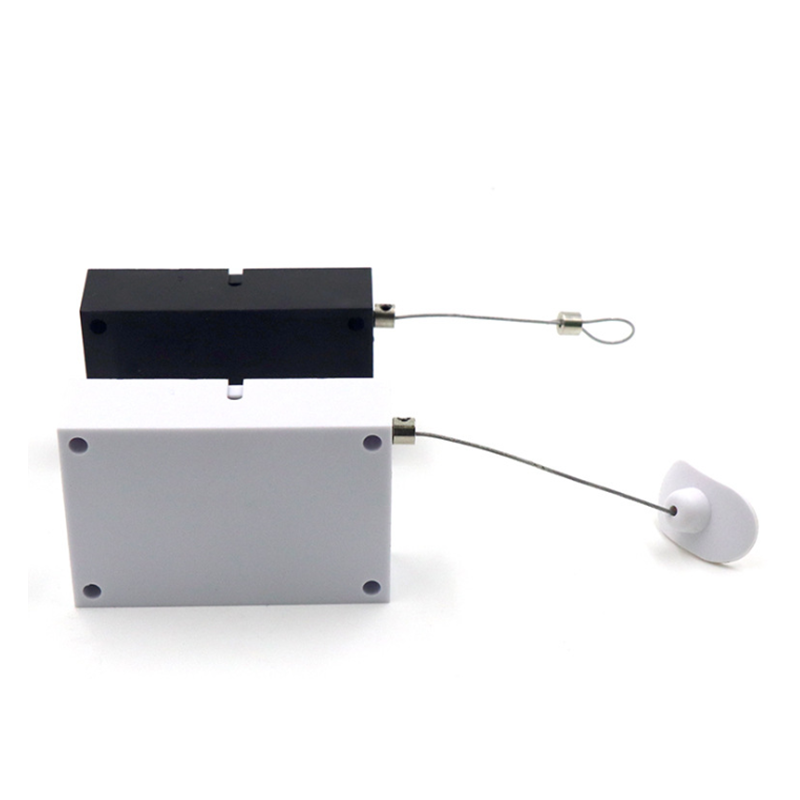

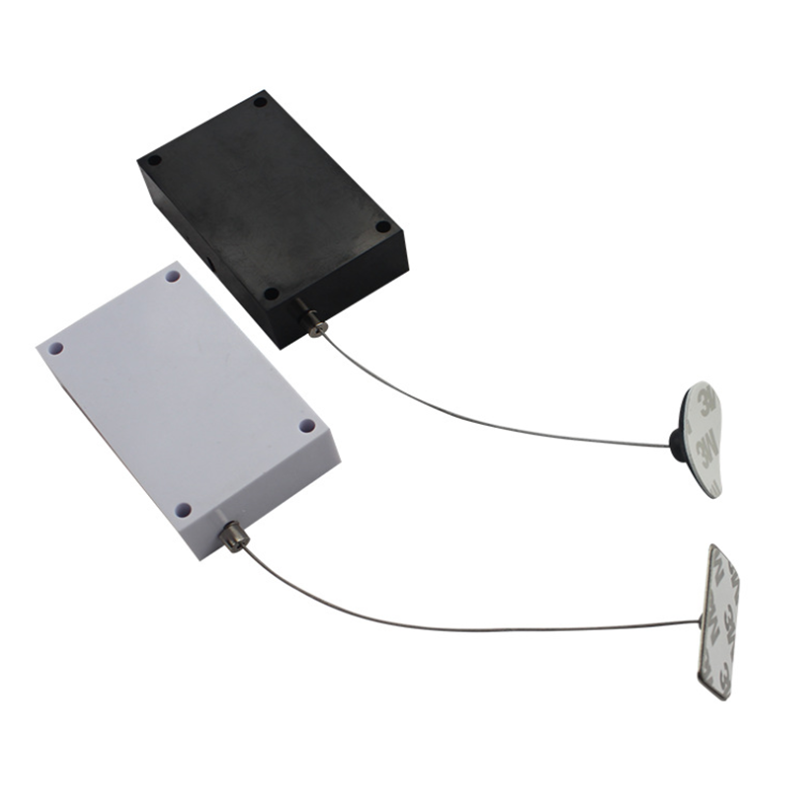

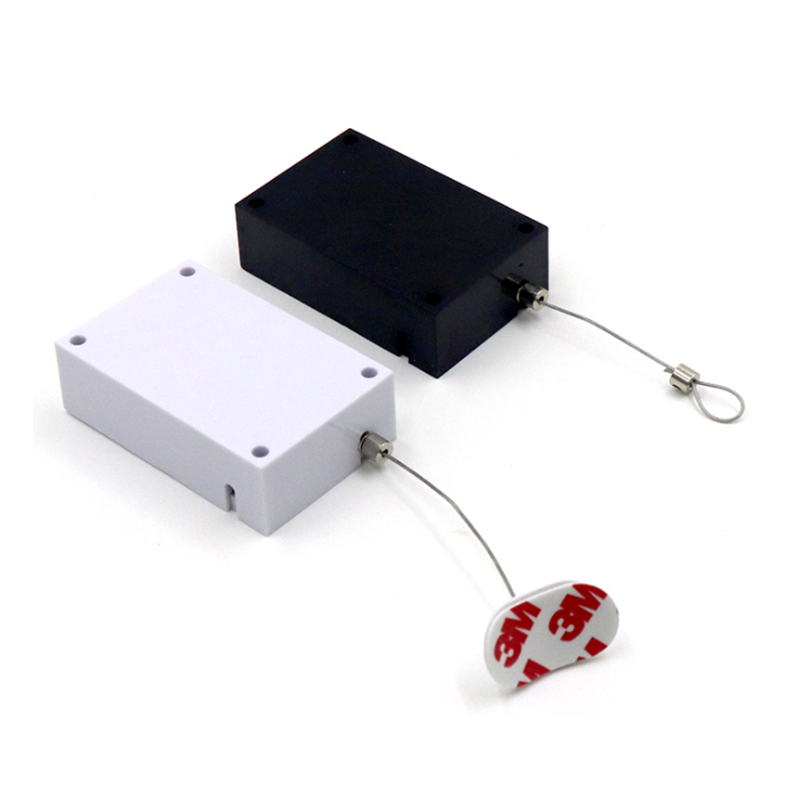

Box Color: Black, White
Box Shape: Cuboid / Rectangular Solid
Cable Covered: Transprent Nylon Coated
Cable Diameter: 0.6/0.9/1.2/1.5mm
Cable Extending Length: 90-300cm
Standard Cable: 0.9x1000mm
Inside Spring: SUS301 Material
Retracting Force: 260-700g
Bearing Strength: 30kg

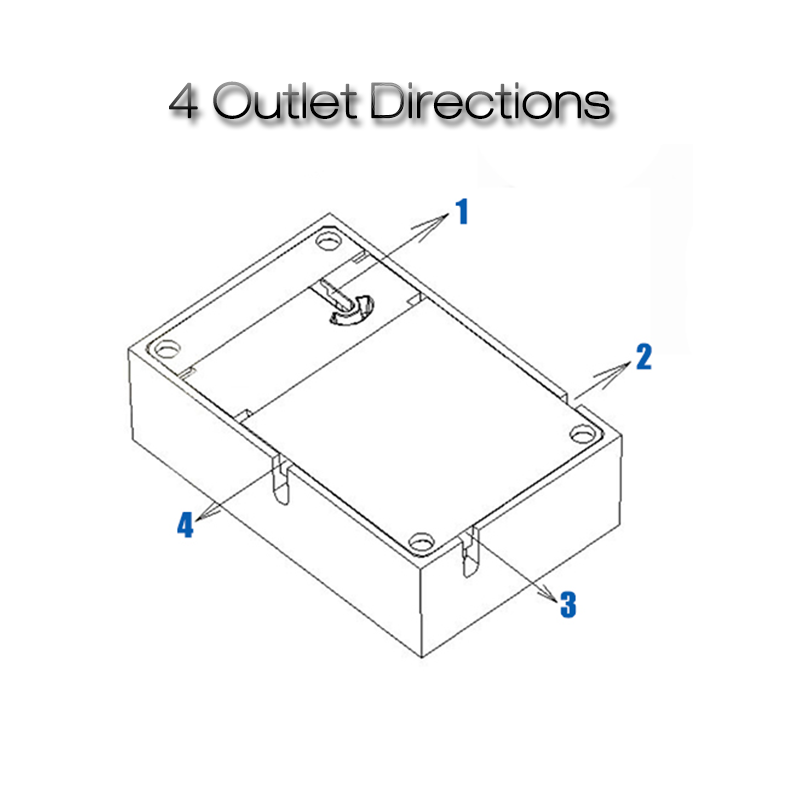

Outlet Direction: 4 Outlets (side/top/middle/front)

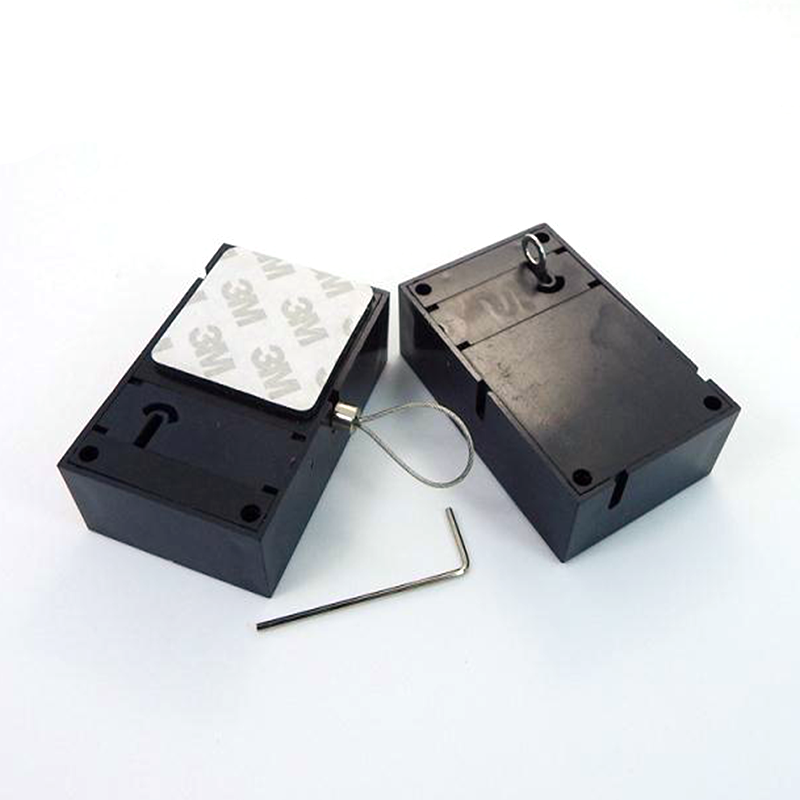

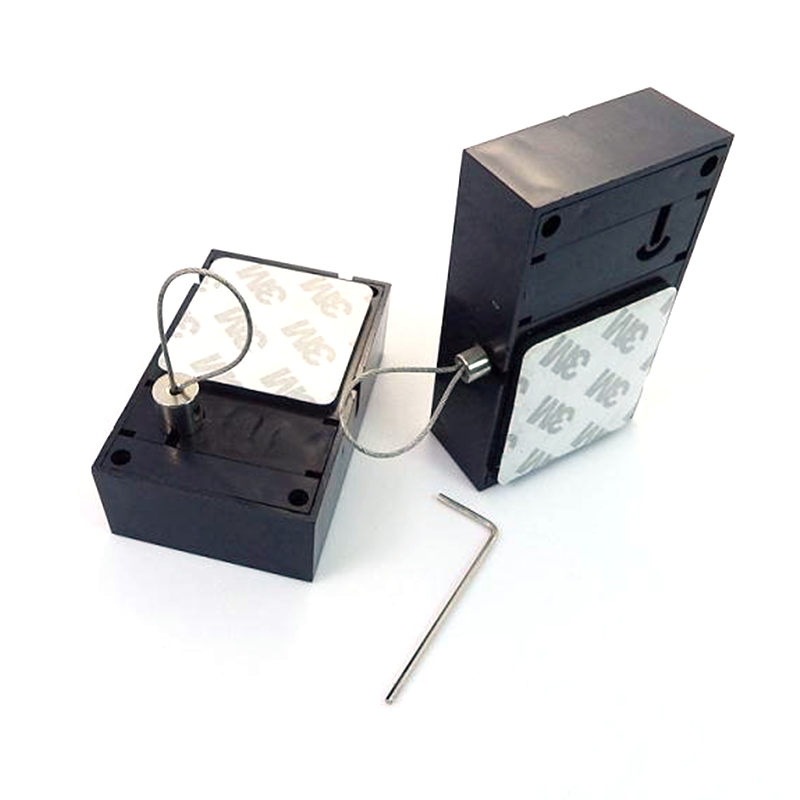

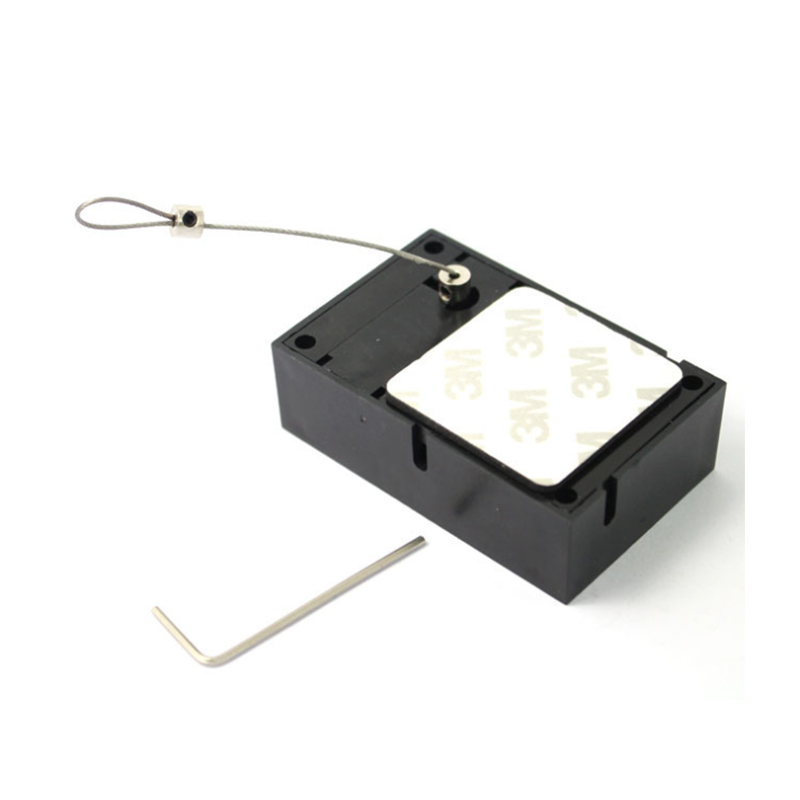

Accessory: L Shape Allen Key, 3M Adhesive Sticker
Brake System: With or Without Stop Locking Function

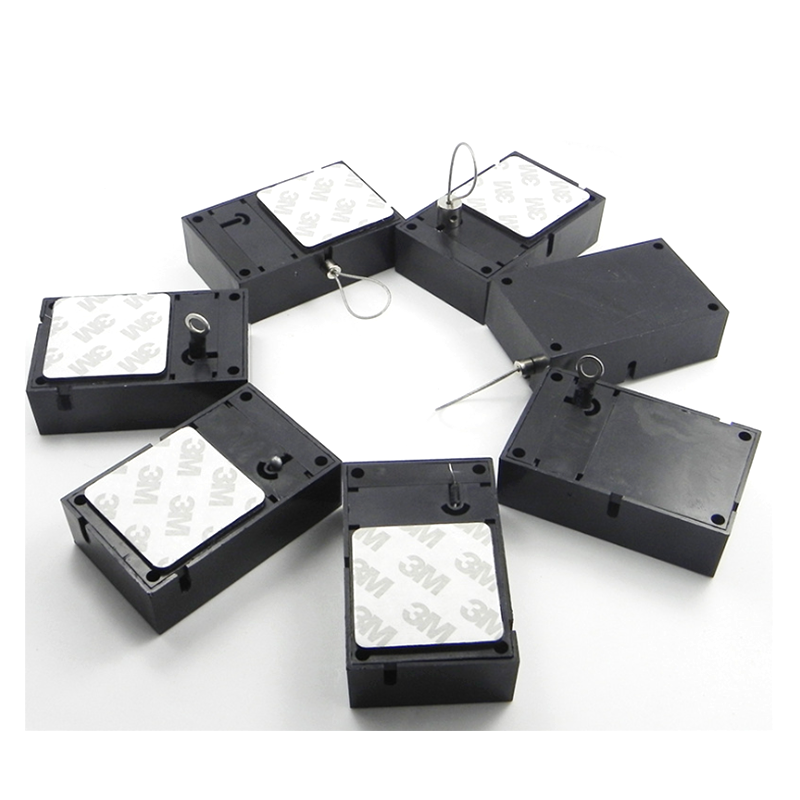

Installation: Screw Lock, 3M Glue (32x32x2mm)
Standard: 2 Brass Lock Connector (5x6MM), Cable 0.9x1000MM
Note: When opening 2 connectors simultaneously, be sure to hold the steel wire rope tightly. If it retracts, it will be scrapped.
Customized: box color, cable material, cable diameter, cable length, end fitting

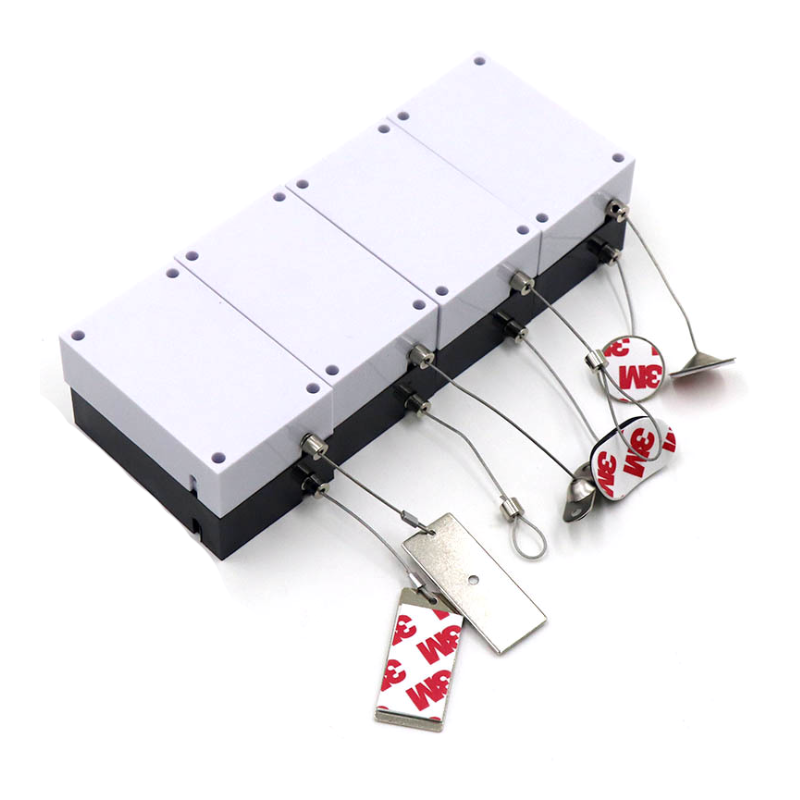

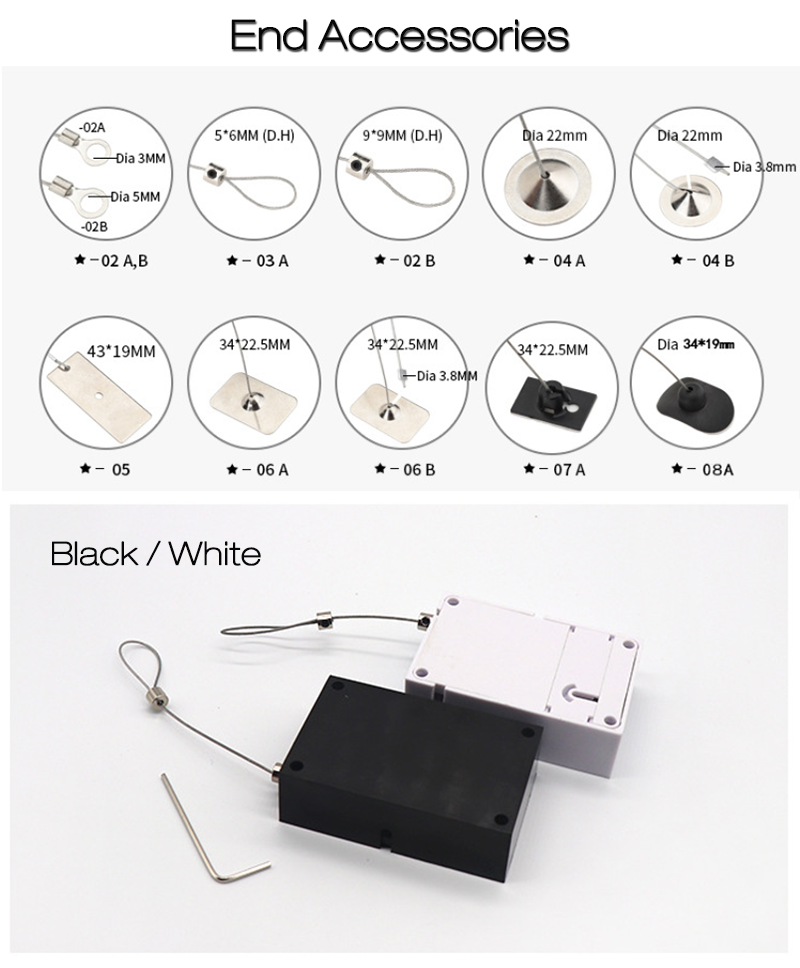

Available Ends: circular adhesive ABS plate (OD30/38mm), rectangular adhesive ABS plate (25*15mm), circular sticky metal plate (OD22/38mm), rectangular adhesive metal plate (35*20mm), rectangular sticky metal plate (45*19mm), perforated metal plate with screw installation, eyelet terminal (hole dia 3/5mm), ball shaped casting (OD3.8mm), adjustable loop with metallic lock and allen key, fixed wire loop, M6/M8 flat head screw, fixed wire loop with key ring, fixed wire loop with cable ring, side hole hardware, magnetic clasps, snap key hook, adjustable loop covered with silicone hose, sticky flexible rubber tip (33*19mm)
Product Features:
Big security recoiler with custom loop/eyelet, iron/rubber/ABS plate
Flexible outlets available for custom end fittings, easy to DIY
Good security retractor connecting the valuable items you would like to protect
Stainless steel spring inside with durable tensile force and long service life
With 3M glue on back of box or 2 screws (hole 3.2mm) installed if require
Retail or exhibition anti-theft and anti-lost display your products safely more
One L-Shaped allen key attached used for end wire loop with locking or unlocking
Popular and common used to protect selling merchandises in electronic stores
Widely used in mobile shop, store, digital shop, supermarket, exhibition, etc
Manfacture Process:
1. Using 3M double-sided adhesive tape from original 3M factory, with high stickiness, no worries about fixing
2. Ultrasonic welding for every product, without any gaps, more firm and durable
3. Using the high-qualitied whirlpool retractable spring to ensure more than 100,000 times pull life
4. Stainless steel cable, built-up with 49pcs (7*7 structure)fine steel wire, more stand wear and tear
5. Every moving parts built in the box put with special oil to ensure the stainless steel cable lengthen and shorten smoothly
6. All the plastic parts mold one-time by full-automatic injection machine, reduce error to lowest, can be rated as Seiko secret agents
How to select your suitable pull box?
1. Select the box shape and color you need
2. Confirm the back with 3M sticker or by screw
3. let us know the retractable cable length and diameter
4. Choose the right ending for your product
