spocketguard
Modle Number: SPB01019
Country of Origin: China
Brand Name: Spocketguard
Product Description:
Merchandising display box also known as security pull box recoiler, cable retractor, display recoilers, security tether and anti-theft pull box, it can be broadly used for point of retail product positioning, purchase security, wire harness positioning in electronic equipment, equipment counterbalancing, signage support, and product or parts feeding, it can be used in supermarkets, retail shops and exhibition and some other daily products display, aim to prevent the showing objects, like jewelry, glasses, watch, digital merchandises and other small valuable item being stolen. It can work together with any connectors or mounting base/holder or custom request. The box can be fixed on the back of display cabinet by screw or adhesive tape.
Product Details:
Material(s): ABS, Stainless Steel

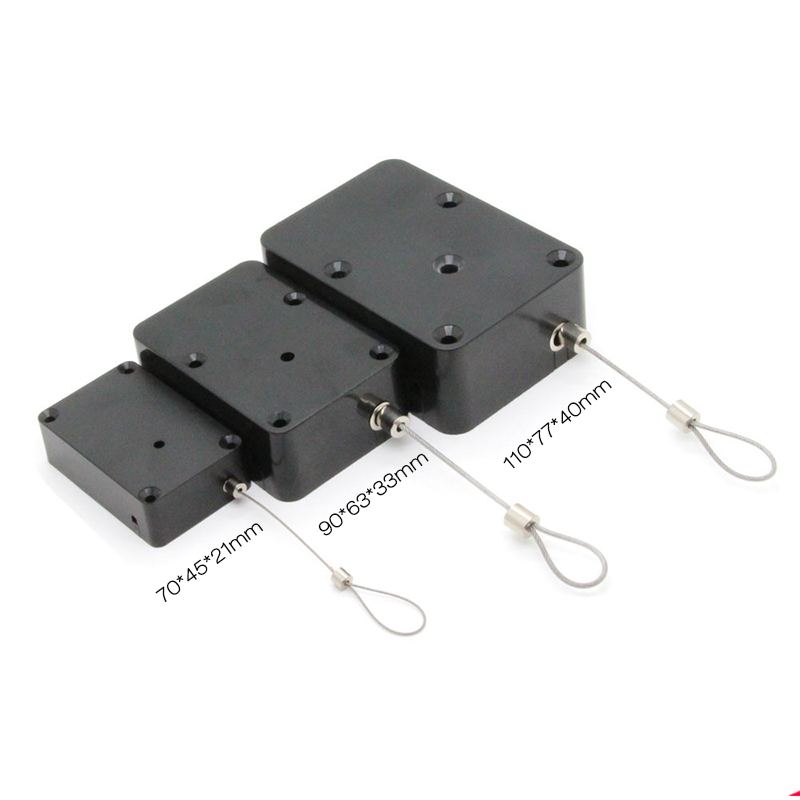

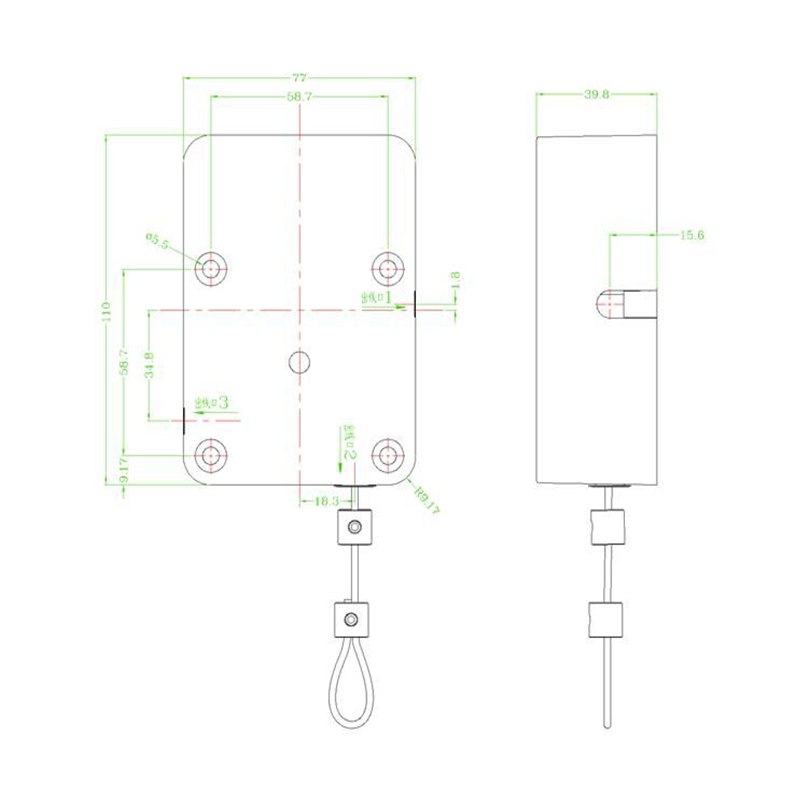

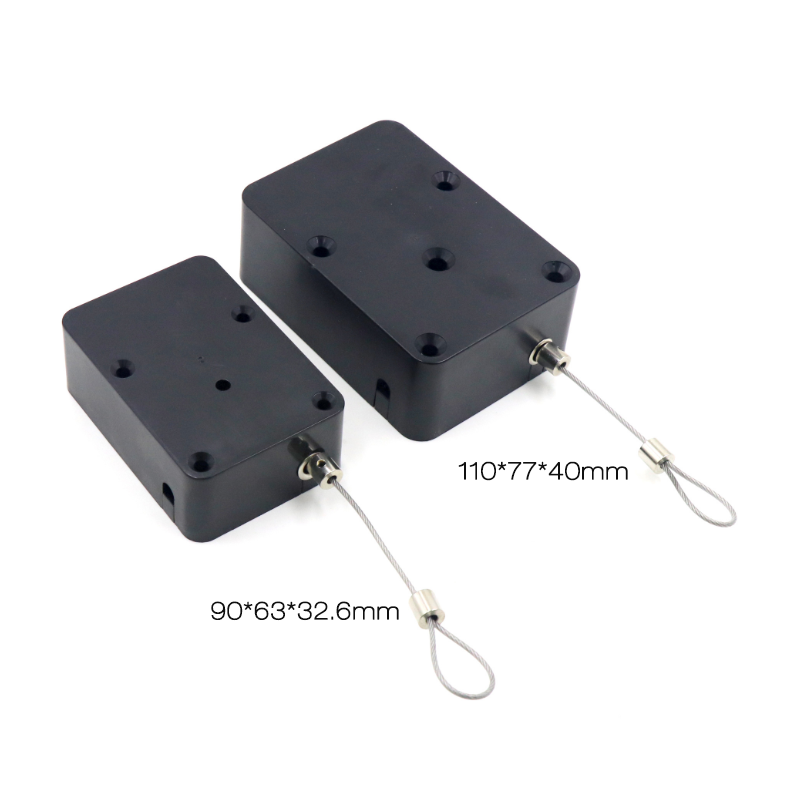

Size: 110x77x40mm
Box Color: Black, White
Box Shape: Cuboid / Rectangular Solid
Cable Covered: Transprent Nylon Coated
Cable Diameter: 1.2/1.5/1.8/2.0/2.5mm
Cable Extending Length: 100-400cm
Standard Cable: 1.5x3000mm
Inside Spring: SUS301 Material
Retracting Force: 260-800g
Bearing Strength: 100kg
Outlet Direction: 3 Outlets

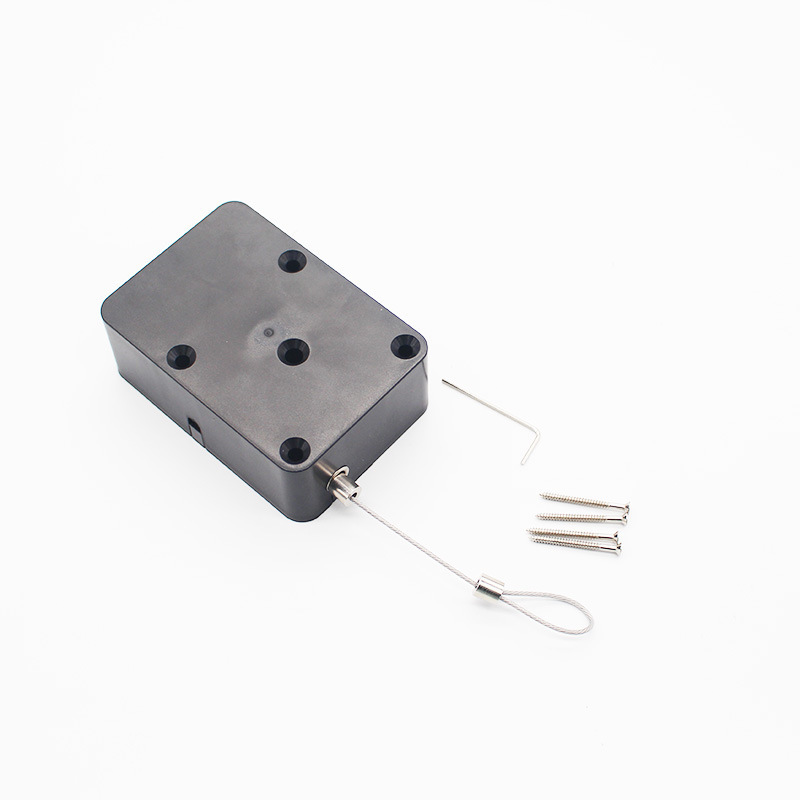

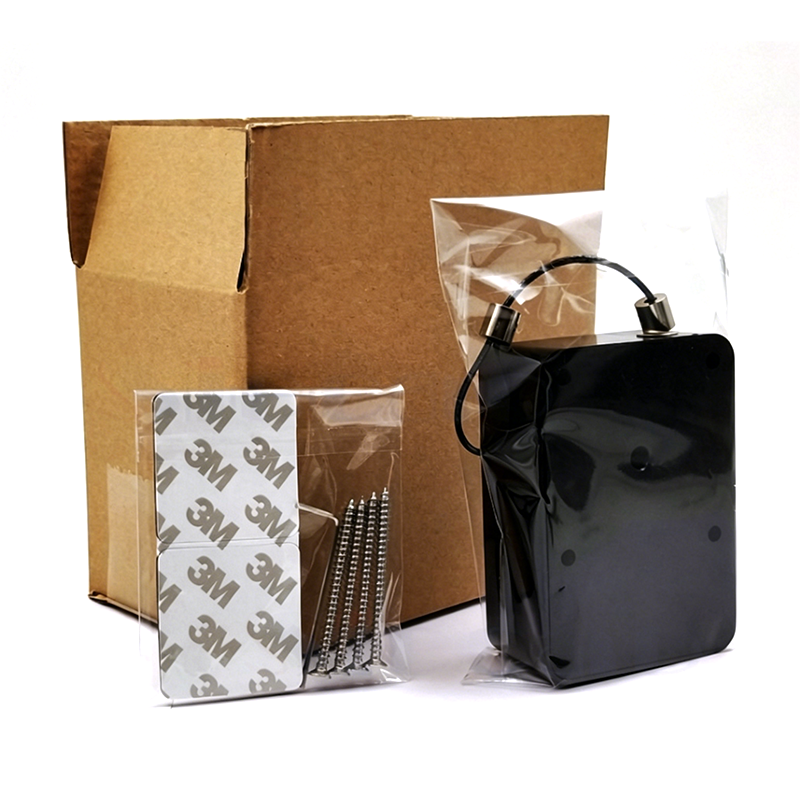

Accessory: L Shape Allen Key, 3M Adhesive Sticker

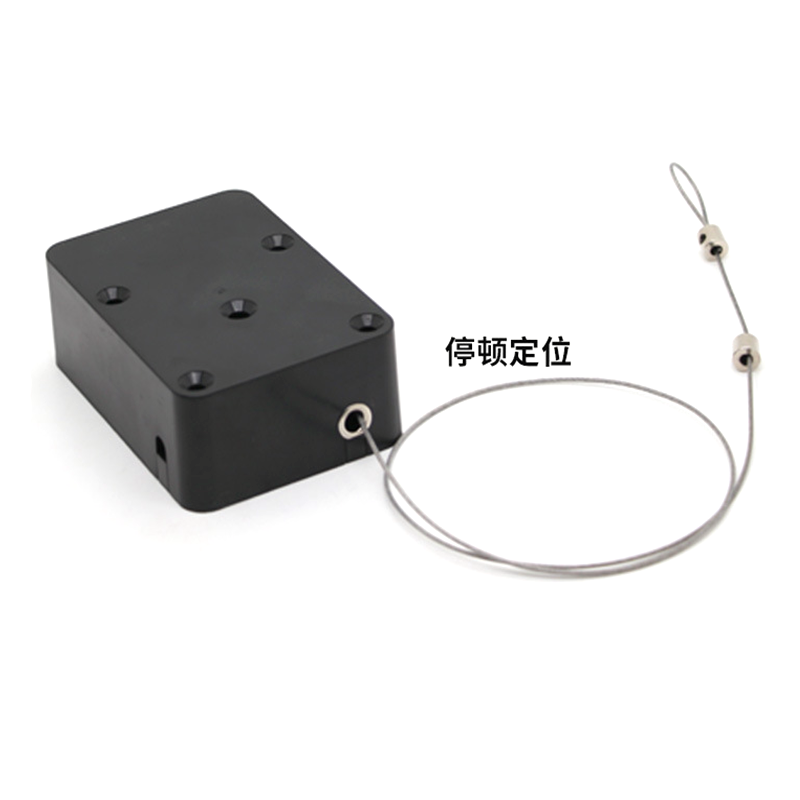

Brake System: With or Without Stop Locking Function

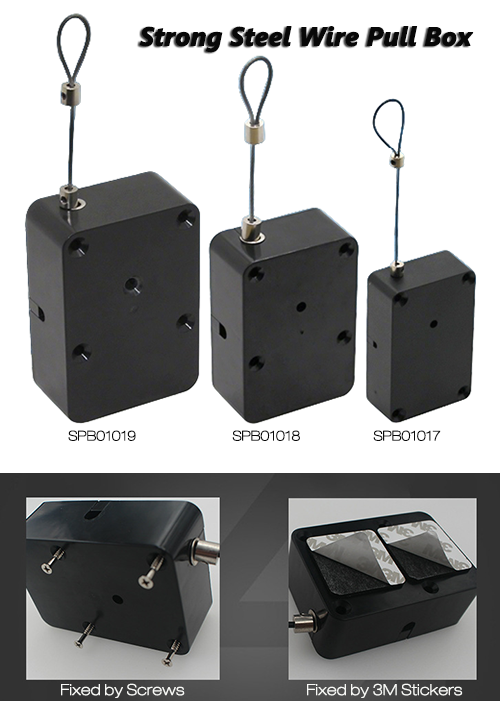

Installation: Screw Lock, 3M Adhesive (32x32x2mm)
Standard: 2 Brass Lock Connector (9x9MM), Cable 1.5x3000MM
Note: When opening 2 connectors simultaneously, be sure to hold the steel wire rope tightly. If it retracts, it will be scrapped.
Customized: box color, cable material, cable diameter, cable length, end fitting
End Fittings:
1. Ring terminal: inner hole diameter 3mm, 4mm, 5mm for option
2. ABS end: grey round, diameter 30mm
3. ABS end: thick black round, diameter 30mm
4. ABS end: thin grey round, diameter 38mm
5. ABS end: white rectangle, 15*25mm
6. ABS end: thick white round, diameter 30mm
7. Metal end: rectangle shape, 35*22mm
8. Metal end: round shape, diameter 22mm
Product Features:
Big size of security recoiler with custom loop/eyelet, iron/rubber/ABS plate
Freely selectable 3 outlets for retractable cable pulling out with different ends
Good steel cable retractor connecting the digital products you would like to protect
Stainless steel spring inside with strong&durable tensile force and long service life
With 2 square 3M stickers on back of pull box, 4 screws also ready if require
Retail or exhibition security display system made your products safely more
One L-Shaped allen key attached used for end wire loop with locking or unlocking
Popular and common used to protect selling merchandises in retail shops
Widely used in jewelry store, mobile/digital shop, supermarket, exhibition, etc
Manfacture Process:
1. Using 3M double-sided adhesive tape from original 3M factory, with high stickiness, no worries about fixing
2. Ultrasonic welding for every product, without any gaps, more firm and durable
3. Using the high-qualitied whirlpool retractable spring to ensure more than 100,000 times pull life
4. Stainless steel cable, built-up with 49pcs (7*7 structure)fine steel wire, more stand wear and tear
5. Every moving parts built in the box put with special oil to ensure the stainless steel cable lengthen and shorten smoothly
6. All the plastic parts mold one-time by full-automatic injection machine, reduce error to lowest, can be rated as Seiko secret agents
How to select your suitable pull box?
1. Select the box shape and color you need
2. Confirm the back with 3M sticker or by screw
3. let us know the retractable cable length and diameter
4. Choose the right ending for your product
